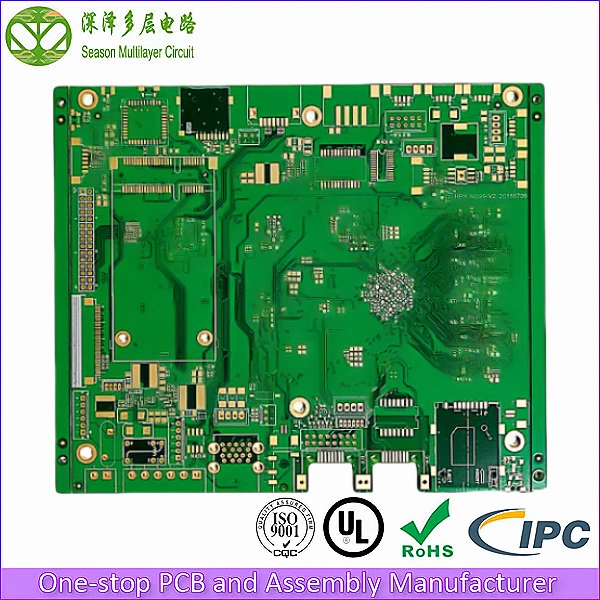

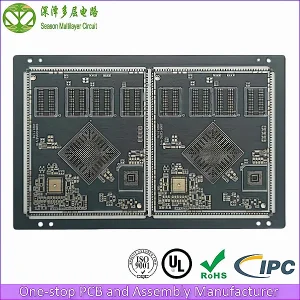

High-Reliability 8-Layer Security System PCB Boards
Mission-critical multilayer PCBs engineered for 24/7 AI surveillance, biometric access control, and encrypted data transmission. Zero downtime. Maximum signal integrity.
Security and surveillance systems demand uninterrupted performance in the harshest environments — from freezing outdoor camera enclosures to high-humidity access control terminals. At Season Multilayer Circuit, we manufacture 8-layer security system PCBs that deliver superior EMI shielding, precise impedance control, and industrial-grade thermal management. Whether you are building 4K IP cameras, PoE++ powered devices, or AI-enabled NVR systems, our boards ensure your security hardware never misses a frame.
8
Layer Count
3/3 mil
Min. Trace / Space
0.20 mm
Min. Via Diameter
Tg 180
Glass Transition Temp
1-2 µ”
ENIG Gold Thickness
ISO9001-2004
ISO14001
UL (E305905)
IPC-Class 2/Class 3
IATF 16949
RoHS

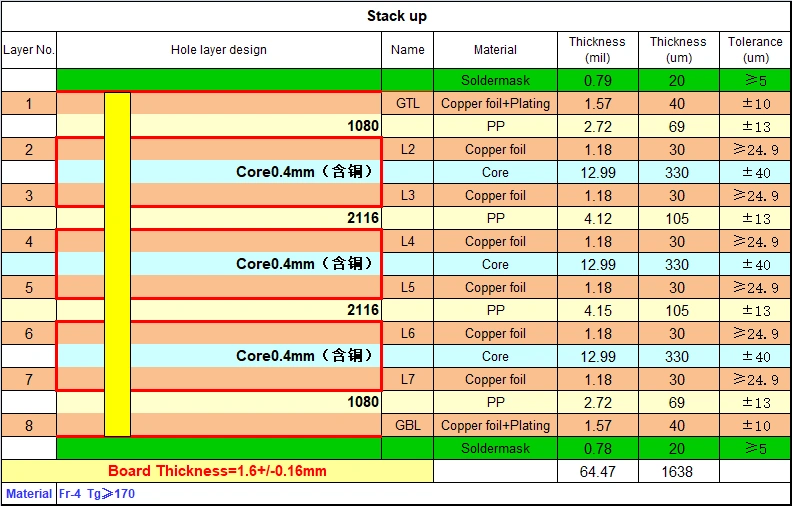

8-Layer Security System PCB Stackup Diagram
For security hardware, signal integrity is everything. Our standard 8-layer stackup maximizes shielding by sandwiching high-speed routing layers between solid ground and power planes, drastically minimizing cross-talk in high-definition video feeds.
- Top Layer (Copper / Plated): Component Placement & High-Speed Signal
- Inner Layer 2(Ground Plane): Reference Shielding for L1 & L3
- Inner Layer 3(Signal Layer): Controlled Impedance (Differential Pairs)
- Inner Layer 4(Power Plane): Dedicated Power Distribution
- Inner Layer 5(Ground Plane): Dedicated Power Distribution
- Inner Layer 6(Signal Layer): Controlled Impedance (Single-Ended)
- Inner Layer 7(Ground Plane): Reference Shielding for L6 & L8
- Bot Layer(Copper / Plated): Secondary Routing & Thermal Dissipation

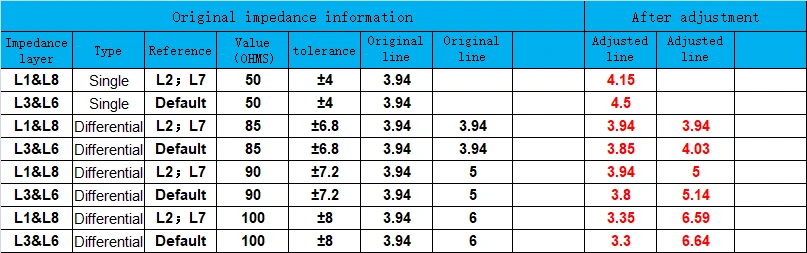

If your current trace widths and spacings fall outside strict impedance tolerance zones, there is no need to worry. Our engineering team will design the optimal stackup architecture for your specific layout, making micro-adjustments to your original trace dimensions to guarantee your board performs exactly as intended.
Technical Capability & Specifications
| Parameter | Specification | Advanced Capabilities |
| Layer Count | 8Layer | 2-32L(Mass); 2-64L(Sample) |
| Base Material | Fr-4.0 S1000-2M Tg180 | SY, NY,TUC,ZY,EMC,KB,ITEQ, Rogers, Megtron , Nelco,Isola |
| Board Thickness | 1.6mm | 0.2-6.4mm(Mass);0.15-20mm(Sample) |
| Panel Size | 145*119mm/1 | 800*600mm(Mass);1050*610(Sample) |
| Copper Thickness | Outer: 1 OZ Inner: 1 OZ | Outer: 1/3-12 OZ Inner: 1/4-12 OZ |
| Min Drill Size | 0.2mm | 0.15mm(Mass);0.127mm(Sample) |
| Min Trace Width/Spacing | 3/3mil | 2.36/2.36mil(1OZ) 2/2mil(HOZ) |
| Min BGA Pad | 0.25mm | 0.15mm |
| Surface Finish | ENIG1-2“ | OSP,ENIG,HASL,Electric Hard Gold, ENIG+OSP,ENEPIG,Immersion Silver & Tin |
| Solder Mask Color | Matte Black | Green, Blue,Black,White,Yellow,Red,Pruple, Matte Green,Matte Blue,Matte Black |
| Impedance Control | ±8% (50/85/100Ω) | ±5% (Strict Tolerance) |
| Min Routing Tolerance | ±0.15mm | ±0.75mm |
| Quality Standard | IPC-Class 2,RoHS | IPC-Class 3,UL,Rohs,IATF16949,GJB |
| PCB Type | Multilayer | HDI,Multilayer,Rigid-Flex,High Frequency,High Speed,Hybrids & Mixed Dielectrics |
Key Advantages of Our 8-Layer Security PCBs
- Advanced Layer Stackup: Optimized 8-layer configuration with interleaved ground planes for superior EMI/EMC shielding and noise reduction in high-definition video feeds.
- Precision Impedance Control: Strict ±8% tolerance (50Ω/85Ω/90Ω/100Ω) for high-speed video processing and data transfer, with ±5% available for ultra-high-speed applications.
- Industrial-Grade Durability: Built with High-TG FR4 materials (Tg ≥170°C) to withstand harsh, outdoor deployment environments and extreme temperature cycling.
- PoE++ Power Delivery Support: Optimized trace widths and heavy copper options (up to 12 OZ) to safely handle 90W PoE++ (IEEE 802.3bt) without thermal buildup.
- IPC-Class 3 Option: Available for mission-critical applications where zero-defect reliability is non-negotiable.
Overcoming Critical Challenges in Security Hardware Design
When sourcing multilayer boards for surveillance and security applications, electronic buyers and engineers routinely encounter three major failure points. Here is how our engineering team eliminates them:
1. Video Signal Distortion & Frame Drops
The Problem: Low-quality stackups cause electromagnetic interference (EMI), leading to packet loss and dropped frames in 4K IP cameras. When a security camera drops even a single frame during a critical event, the entire surveillance system has failed.
Our Solution: Our 8-layer architecture uses tightly coupled interleaved ground planes (L2, L5, L7) to block cross-talk and maintain clean high-speed video signals. Every signal layer is adjacent to a solid ground reference, ensuring clean return paths and minimal EMI radiation. The result: stable, artifact-free 4K video feeds even in electrically noisy environments.
2. Thermal Failure in Sealed Outdoor Enclosures
The Problem: Security cameras and biometric readers sit inside unventilated outdoor enclosures under direct sunlight, causing rapid component degradation. Internal temperatures can exceed 85°C, leading to capacitor bulging, IC failure, and premature board death.
Our Solution: We use premium High-TG materials (Tg ≥170°C) paired with optimized thermal via arrays to pull heat away from critical ICs. The central ground plane (L5) acts as a thermal spreader, distributing heat evenly across the board. For extreme environments, we offer heavy copper pours and metal-core PCB options for maximum thermal dissipation.
3. Heavy Voltage Drops in PoE++ Systems
The Problem: Power over Ethernet Plus Plus (PoE++, IEEE 802.3bt) demands heavy power delivery — up to 90W per port. Substandard boards overheat or suffer massive voltage drops when delivering this much power over long cable runs, causing connected devices to brown out or reset.
Our Solution: We optimize your trace widths for the power budget and offer heavy inner copper options (up to 12 OZ) to handle high-wattage PoE++ delivery safely without thermal buildup. Our PCB manufacturing services include full DFM review of your power distribution network to ensure stable voltage at the load.
Where Our 8-Layer Security System PCBs Are Used
Our high-reliability security PCBs are deployed across a wide range of surveillance and access control applications:
- AI Surveillance Cameras: 4K/8K IP cameras with edge AI processing for real-time object detection, facial recognition, and license plate reading. The 8-layer stackup ensures clean video signal transmission and stable power for always-on AI inference.
- Biometric Access Control Terminals: Fingerprint and facial recognition readers for building security. Precise impedance control ensures reliable high-speed data transmission between biometric sensors and processing chips.
- Network Video Recorders (NVR): Multi-channel video encoding, storage, and network streaming systems. The dedicated power and ground planes support the heavy power demands of multi-drive NVR enclosures.
- PoE++ Powered Devices: IP cameras, access controllers, and intercom systems powered via a single Ethernet cable. Heavy copper options ensure stable 90W power delivery without voltage drops.
- Encrypted Communication Modules: Hardware-level encryption boards for secure data transmission in government, military, and enterprise security networks. EMI shielding prevents signal leakage and tampering.
- Perimeter Intrusion Detection Systems: Outdoor sensor arrays and microwave barriers that operate 24/7 in extreme weather conditions. High-TG materials and conformal coating ensure long-term reliability.
Our Quality Guarantee for Security System PCBs
Security systems operate 24/7 and cannot tolerate failures. Even minor manufacturing defects can cause signal degradation, video artifacts, or complete system downtime. We implement rigorous testing protocols on every board:
- 100% AOI Inspection: Automated Optical Inspection scans every layer for trace breaks, shorts, and alignment errors before lamination.
- 100% Electrical Testing (E-Test): Flying probe or fixture-based testing verifies continuity and isolation on every finished board — no exceptions.
- Controlled Impedance Testing: We provide a dedicated Polar Instruments impedance test report with every batch, documenting compliance with your specified impedance values.
- X-Ray Inspection: Available for BGA and QFN packages to verify solder joint integrity on high-density security processor packages.
- Certifications: ISO9001:2015, ISO14001, IATF16949, UL (E305905), RoHS compliant. IPC-Class 3 manufacturing available for mission-critical applications.
Why Choose Season PCB for Your Security System Boards?
With nearly 20 years of experience in PCB manufacturing, Season Multilayer Circuit has served over 8,000 global clients in industries including security electronics, automotive, medical devices, and telecommunications. Our three manufacturing facilities (Shenzhen, Anhui, and Jiangxi) provide combined capacity for both rapid prototyping and high-volume mass production.
We understand that security hardware has zero tolerance for failure. That is why every 8-layer security PCB we ship is backed by:
- Free DFM file checking before production — we catch design issues before they become manufacturing defects
- 24/7 dedicated engineering support — real engineers, not chatbots, available around the clock
- Guaranteed on-time delivery — we respect your project timelines
- No minimum order quantity — from 1 prototype to 100,000+ units
- Engineering fee waivers on bulk production orders
Frequently Asked Questions
Q1: Why use an 8-layer PCB instead of a 4-layer or 6-layer PCB for security systems?
A: Security systems combine high-speed video processing, PoE++ power delivery, and encrypted data transmission — all on the same board. A 4-layer or 6-layer PCB cannot provide enough dedicated ground and power planes to shield these functions from each other. The 8-layer configuration gives every critical signal layer its own ground reference, which is essential for eliminating cross-talk in 4K video feeds and preventing voltage drops in PoE++ circuits.
Q2: What impedance control tolerance can you guarantee for 8-layer security PCBs?
A: Our standard impedance control tolerance is ±8% for 50Ω, 85Ω, and 100Ω. For ultra-high-speed applications, we can achieve ±5% tolerance with stricter manufacturing controls. Every batch includes a dedicated impedance test report from Polar Instruments.
Q3: What is the typical lead time for 8-layer security PCB prototypes?
A: Standard prototype lead time is 5-7 working days. Expedited 48-hour service is available for urgent projects. For mass production, typical lead time is 10-15 working days depending on order volume and complexity.
Ready to start your 8-Layer Security System PCB project?
Whether you need 5 pieces for prototyping or 50,000 for mass production, our engineering team is ready to support your project with DFM review, impedance modeling, and fast-turn fabrication.
