PCB Factory Tour & Facility Display
Backed by robust technical expertise, we possess mature circuit board manufacturing technologies supported by a sophisticated production ecosystem. Our facilities are equipped with state-of-the-art PCB manufacturing systems and precision inspection equipment sourced from global technology leaders in the United States, Germany, and Japan. This strategic infrastructure enables mastery of industry-leading production processes and quality control methodologies.
6-Axis CNC Drilling Machine
Laser Drilling Machine
PTH Copper Deposition Line
VCP Electroplating Line
Pattern Plating Line
Automatic Legend Printer
ENIG Surface Finish Line
CNC Routing Workshop

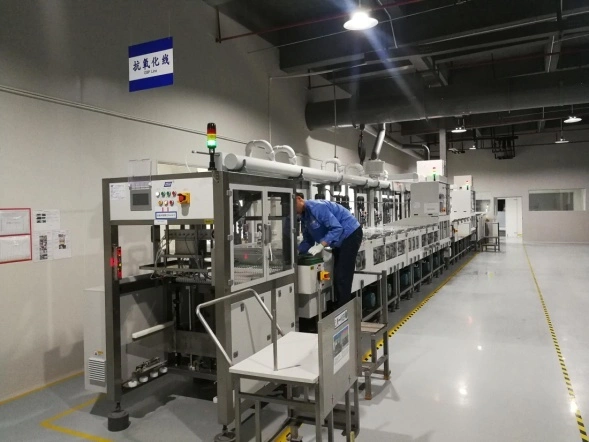

OSP Line
Electrical Test Equipment
AVI Inspection Machine

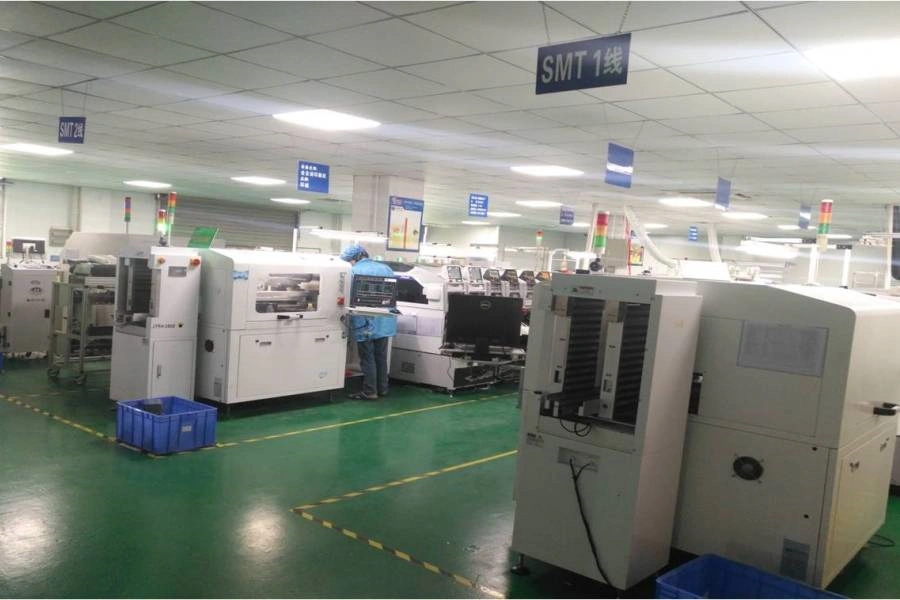

SMT Workshop

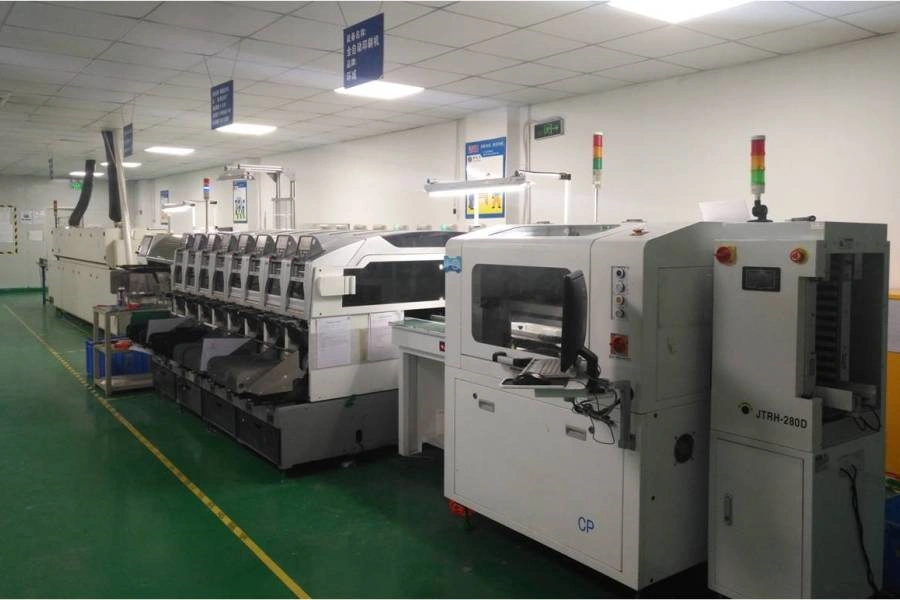

SMT Line

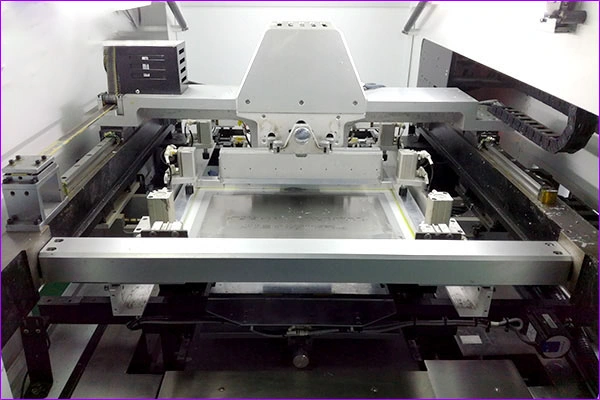

Solder Paste Printer

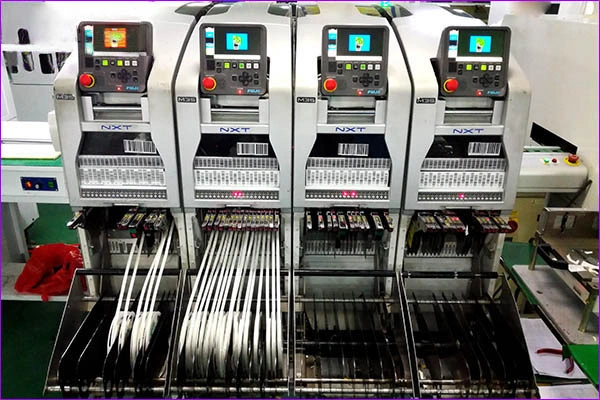

Fuji NXT Placement Machine
Fuji XPF Placement Machine

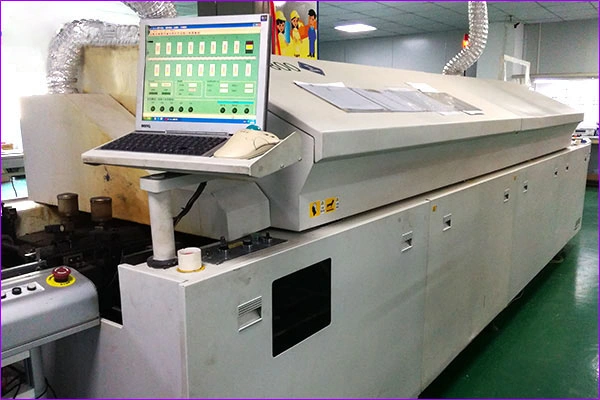

8-Zone Reflow Oven

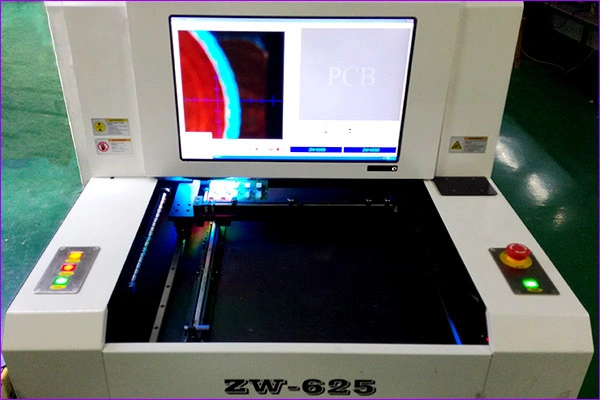

ZW-625 AOI Machine
Inside Our PCB Factory
Welcome to Season PCB’s PCB factory in Shenzhen, China. Our manufacturing facility spans over 20,000 square meters and is equipped with state-of-the-art equipment for PCB fabrication, from inner layer imaging to final surface finish. As a leading PCB factory, we maintain Class 10000 cleanrooms, automated production lines, and comprehensive quality control systems. Every stage, from CAM engineering and material storage to final packaging, runs inside this single facility, giving us full control over quality, lead time, and cost.
Production Lines
Inner Layer Processing
Our PCB factory features LDI (Laser Direct Imaging) systems for ultra-fine line processing down to 0.05mm. The inner layer production line includes automated lamination presses, DES (Develop-Etch-Strip) lines, and AOI inspection stations that ensure precise copper pattern transfer. Inner-layer handling takes place in cleanroom conditions, keeping copper surfaces free from dust and oxidation for reliable fine-line imaging.
Drilling Department
The PCB factory drilling department operates CO2 laser drills for microvias and multi-spindle CNC drill machines for through-holes. We achieve minimum hole size of 0.075mm for microvias and 0.15mm for mechanical drills, controlled by advanced drill optimization software. X-ray alignment machines verify drill-to-target registration, and automatic tool-wear tracking keeps hole-wall quality consistent across the full panel.
Plating and Surface Finish
Our PCB factory plating line includes copper plating, DC plating for through-holes, and pulse plating for microvias. The surface finish line supports ENIG, ENIPIG, immersion silver, and OSP finishes with automatic bath analysis and control systems. Automatic dosing keeps every chemistry bath within tight windows, and cross-section coupons confirm plating thickness before any panel moves to shipment.
Quality Control Systems
Quality control at our PCB factory includes 100% electrical testing, AOI inspection at multiple stages, X-ray inspection for BGA and microvia quality, and TDR testing for impedance verification. Every PCB leaving our factory meets IPC-A-600 Class 2 or Class 3 standards. First-article inspection, in-process SPC charts, and full batch traceability close the loop, so any drift is caught at the station where it happens.
Visit Our PCB Factory
We welcome customer visits to our PCB factory. Schedule a tour to see our production capabilities firsthand. Contact Season PCB to arrange a factory visit and discover why we are a trusted PCB manufacturer for customers in over 50 countries. Tours typically cover drilling, plating, the SMT workshop, and the reliability lab, and take two to three hours. If you cannot travel to Shenzhen, we also offer live video audits with real-time access to the production floors.
Our PCB factory also features an advanced surface finish line capable of ENIG, ENIPIG, immersion silver, immersion tin, OSP, and hard gold plating. This surface finish capability ensures optimal solderability and corrosion resistance for every PCB we produce. Our engineering team helps you select the right finish based on application, soldering process, and shelf-life requirements.
Certifications and Standards
Our PCB factory holds ISO 9001:2015, IATF 16949, RoHS, and UL certifications. These certifications demonstrate our commitment to quality management and environmental responsibility. Every production line operates under strict quality control procedures. Certificates are available on request, and customer or third-party audits are welcome at any time.
Our PCB factory operates 24/7 with automated production lines and Class 10000 cleanrooms to ensure maximum output and consistent quality. Inside the Season PCB factory, you will find state-of-the-art drilling machines, LDI exposure systems, AOI inspection equipment, and flying probe testers that guarantee precision at every manufacturing stage. As a dedicated PCB manufacturer, we maintain strict process control from CAM engineering through final electrical testing, delivering boards that meet IPC Class 2 and Class 3 standards.
Visiting our PCB factory gives customers confidence in our manufacturing capabilities. The Season PCB factory spans over 20,000 square meters with a monthly capacity of 50,000 square meters of PCBs. Our workforce includes over 500 skilled technicians and engineers dedicated to quality. Schedule a virtual tour today to see our production lines, quality labs, and material storage facilities firsthand. Each visit ends with a question-and-answer session with our engineering team, so you can discuss stack-ups, materials, and tolerances with the engineers who will build your boards.
Our PCB factory maintains comprehensive traceability systems, ensuring every board can be tracked through each production stage. This commitment to transparency and quality makes us a trusted partner for global electronics brands.
Our PCB factory operates in compliance with ISO 9001 and ISO 14001 environmental management standards. Visit IPC.org for more information on PCB factory quality requirements.
To learn more about our manufacturing capabilities, visit our process capability page. For product specifications, browse our PCB products catalog. Check our company profile for more about our company.
Frequently Asked Questions
How large is your PCB manufacturing facility?
Our factory in Shenzhen spans over 20,000 square meters with a monthly capacity of 50,000 square meters of PCBs, covering everything from inner-layer imaging and drilling to plating, surface finish, electrical testing, and on-site SMT assembly.
What production equipment runs inside the factory?
Key equipment includes LDI exposure systems down to 0.05mm lines, CO2 laser drills for 0.075mm microvias, multi-spindle CNC drilling, VCP and pattern plating lines, ENIG and OSP surface finish lines, flying probe testers, and a full SMT line with Fuji NXT and XPF placement machines.
Does your factory have cleanroom facilities?
Yes. Class 10000 cleanrooms cover the imaging and plating areas, keeping copper surfaces free from dust and oxidation, which is one of the reasons we can hold fine-line tolerances consistently in volume production.
How is quality controlled inside the factory?
Every board passes 100% electrical testing, with AOI inspection at multiple stages, X-ray verification for BGA and microvia quality, and TDR testing for impedance control. Production follows IPC-A-600 Class 2 as standard, with Class 3 available on request, and every panel is traceable through each production stage.
Do you assemble PCBAs in the same factory?
Yes. Our on-site SMT workshop runs solder paste printing, Fuji NXT and XPF placement, an 8-hot-zone reflow oven, and post-reflow AOI, so PCB fabrication and assembly share one quality system and one traceability chain.
How can I visit or audit your factory?
We welcome on-site customer visits and third-party audits; most tours take two to three hours and cover drilling, plating, SMT, and our reliability lab. If travel is not an option, we offer live video audits with real-time access to the production floors. Contact us to schedule either option.
