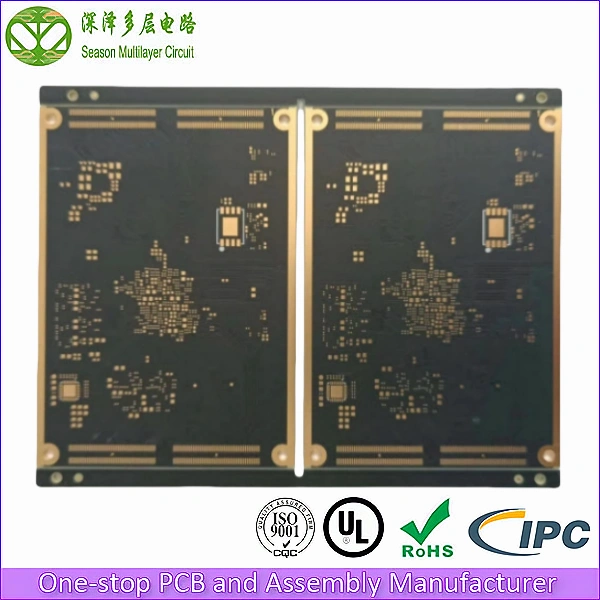

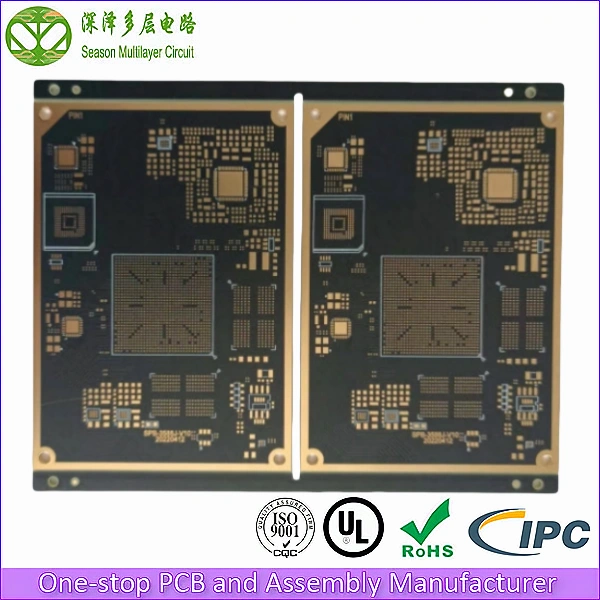

10-Layer HDI Industrial Control PCB
High-reliability 10-layer HDI PCBs for industrial control systems with multi-protocol communication, real-time processing, and rugged reliability for factory automation, PLCs, and motion control in harsh industrial environments.
Industrial control systems demand PCBs that can handle high-speed processing, multiple communication protocols, and harsh environmental conditions — all while maintaining 24/7 reliability. From PLCs to motion controllers, the PCB is the critical backbone of industrial automation. At Season Multilayer Circuit, we manufacture 10-layer HDI industrial control PCBs with blind/buried vias, robust EMI shielding, and industrial-grade thermal management.
1+8+1
Layer Count
3/3 mil
Min. Trace/Space
0.10 mm
Min. Via Diameter
Tg 180
Glass Transition Temp
1-2 u”
ENIG Gold Thickness
ISO9001
ISO14001
UL (E305905)
IPC-Class 2/3
RoHS
UL
10-Layer HDI Industrial Control PCB Stackup Diagram
Our 10-layer HDI stackup for industrial control applications provides comprehensive EMI shielding, multiple power domains, and high-density routing for complex multi-processor industrial control systems.
- Top Layer (Copper/Plated): CPU/FPGA, communication ICs, I/O connectors
- Inner Layer 2 (Ground Plane): EMI shielding for top-side high-speed signals
- Inner Layer 3 (Signal Layer): High-speed data bus routing (PCIe, EtherCAT)
- Inner Layer 4 (Power Plane): Core voltage distribution (3.3V/1.2V)
- Inner Layer 5 (Ground Plane): Signal reference for inner routing layers
- Inner Layer 6 (Signal Layer): Communication protocol routing (CAN, RS-485)
- Inner Layer 7 (Power Plane): I/O power distribution (24V/5V)
- Inner Layer 8 (Signal Layer): Analog sensor routing with buried via interconnects
- Inner Layer 9 (Ground Plane): Bottom-side signal reference
- Bot Layer (Copper/Plated): Bottom routing and thermal dissipation
The 10-layer architecture provides four dedicated ground planes and two power planes, creating exceptional EMI shielding for noisy industrial environments. If your design requires adjustments, our engineering team will optimize the stackup for your specific application.
Technical Capability & Specifications
| Parameter | Specification | Advanced Capabilities |
| Layer Count | 10 Layer HDI | 2-32L (Mass); 2-64L (Sample) |
| Base Material | FR-4 S1000-2M Tg180 | SY, NY, TUC, ZY, EMC, KB, ITEQ, Rogers, Megtron, Nelco, Isola |
| Board Thickness | 2.0mm | 0.2-6.4mm (Mass); 0.15-20mm (Sample) |
| Panel Size | 160x120mm/1 | 800x600mm (Mass); 1050×610 (Sample) |
| Copper Thickness | Outer: 1 OZ Inner: 1 OZ | Outer: 1/3-12 OZ Inner: 1/4-12 OZ |
| Min Drill Size | 0.10mm (Laser) | 0.075mm (Laser Sample) |
| Min Trace Width/Spacing | 3/3 mil | 2.5/2.5 mil (Sample) |
| Blind Via | 0.10mm Laser | 0.075mm Laser (Sample) |
| Buried Via | 0.15mm Mechanical | 0.127mm (Sample) |
| Surface Finish | ENIG | HASL, OSP, Immersion Silver, Immersion Tin, ENIG, ENEPIG |
| Solder Mask | Green | Green, Black, Blue, Red, Yellow, White, Purple |
| Impedance Control | 50/90/100 Ohm +/-8% | +/-5% available for high-speed buses |
Key Advantages of Our Industrial Control PCB
- Quad Ground Plane Shielding: Four dedicated ground planes (L2, L5, L9) provide comprehensive EMI shielding for high-speed data buses, critical in industrial environments with heavy electromagnetic interference.
- Multi-Domain Power Distribution: Separate power planes for core voltage (L4) and I/O power (L7) prevent power supply noise from coupling between sensitive processing circuits and noisy I/O drivers.
- HDI Density for Complex Processing: Blind and buried vias enable high-density routing for multi-core processors, FPGAs, and communication ICs within standard industrial form factors.
- Industrial-Grade Reliability: High-TG FR4 (Tg180) with 2.0mm board thickness provides mechanical rigidity and thermal stability for harsh industrial environments with vibration and temperature cycling.
- Multi-Protocol Support: Dedicated signal layers for high-speed buses (PCIe, EtherCAT) and industrial communication protocols (CAN, RS-485, PROFIBUS) with proper impedance control.
Overcoming Critical Challenges in Industrial Control Design
When sourcing HDI PCBs for industrial control applications, engineers encounter three critical challenges. Here is how our engineering team eliminates them:
1. EMI-Induced Communication Errors
The Problem: Industrial environments are electrically noisy with motors, VFDs, and welders generating EMI. Poor PCB shielding causes communication errors on CAN, RS-485, and EtherCAT buses, leading to process interruptions and safety risks.
Our Solution: Our 10-layer stackup uses four ground planes (L2, L5, L9) to create Faraday cage-like shielding around every signal layer. High-speed communication buses are routed on inner layers with solid ground references above and below, achieving >40dB EMI rejection. The result: error-free communication in the harshest industrial environments.
2. Thermal Management for High-Power Processors
The Problem: Industrial controllers use powerful CPUs and FPGAs that generate significant heat. Without proper thermal management, junction temperatures exceed safe limits, causing thermal throttling, erratic behavior, and premature failure.
Our Solution: We optimize thermal via arrays under hot components, connecting them to the bottom copper layer through dedicated thermal channels. The multiple ground planes act as thermal spreaders, distributing heat across the board. For extreme thermal loads, we offer heavy copper pours (up to 12 OZ) and metal-core substrates.
3. Signal Integrity for Mixed-Voltage Systems
The Problem: Industrial controllers combine 24V I/O, 5V logic, 3.3V peripherals, and 1.2V core voltages on one board. Without proper power plane isolation, voltage transients from I/O switching couple into sensitive processing circuits, causing resets and data corruption.
Our Solution: The 10-layer stackup dedicates separate power planes for core voltage (L4) and I/O power (L7), with ground planes between them for isolation. This star-topology power distribution prevents transient coupling between voltage domains, ensuring stable processor operation even during heavy I/O switching.
Where Our Industrial Control PCBs Are Used
Our 10-layer HDI industrial control PCBs power a wide range of industrial automation applications:
- Programmable Logic Controllers (PLC): Multi-processor PLC boards with digital/analog I/O, communication modules, and real-time control logic.
- Motion Control Systems: Multi-axis servo and stepper motor controllers with EtherCAT communication and FPGA-based trajectory planning.
- Industrial PCs (IPC): Rugged industrial computer motherboards with PCIe expansion, multiple Ethernet ports, and industrial I/O.
- SCADA Communication Gateways: Protocol conversion gateways connecting field devices (Modbus, PROFIBUS) to upper-level networks (EtherCAT, Profinet).
- Human-Machine Interface (HMI) Controllers: Touch panel controllers with high-speed display interfaces and industrial communication ports.
Our Quality Guarantee for Industrial Control PCBs
Industrial control electronics operate 24/7 and cannot tolerate failures. We implement rigorous testing protocols on every board:
- 100% AOI Inspection: Automated Optical Inspection scans every layer for trace breaks, shorts, and alignment errors.
- 100% Electrical Testing (E-Test): Flying probe or fixture-based testing verifies continuity and isolation on every board.
- Controlled Impedance Testing: Polar Instruments test report documenting compliance with specified impedance values.
- Thermal Stress Testing: Available thermal cycling testing per IPC-TM-650 for harsh environment qualification.
- Certifications: ISO9001:2015, ISO14001, UL (E305905), RoHS compliant. IPC-Class 3 available for critical applications.
Why Choose Season PCB for Your Industrial Control PCB?
With nearly 20 years of experience in PCB manufacturing, Season Multilayer Circuit has served over 8,000 global clients in industrial automation, process control, and telecommunications. Our three manufacturing facilities provide capacity for both rapid prototyping and high-volume production.
We understand that industrial control electronics demand zero-failure reliability in harsh environments. That is why every 10-layer HDI industrial control PCB we ship is backed by:
- Free DFM file checking before production
- 24/7 dedicated engineering support
- Guaranteed on-time delivery
- No minimum order quantity — from 1 prototype to 100,000+ units
- Engineering fee waivers on bulk production orders
Season PCB specializes in 10-layer HDI industrial control PCB manufacturing for factory automation and process control applications. Our industrial control PCB products feature quad ground plane EMI shielding, multi-domain power distribution, and industrial-grade reliability. Each industrial control PCB meets IPC standards.
For your industrial control PCB needs, Season PCB provides fast turnaround, competitive pricing, and ISO-certified quality. Contact us for industrial control PCB manufacturing today.
Our industrial control PCB boards comply with UL safety certifications and IPC manufacturing standards. Each industrial control PCB undergoes thermal stress testing and signal integrity verification.
Frequently Asked Questions
Q1: Why use 10 layers for industrial control PCBs?
A: Industrial controllers integrate multi-core processors, FPGAs, multiple communication protocols, and mixed-voltage I/O on one board. 10 layers provide dedicated ground planes for EMI shielding, separate power planes for voltage isolation, and sufficient signal layers for high-density routing — all critical for reliable industrial operation.
Q2: Can you support IPC-Class 3 manufacturing for industrial PCBs?
A: Yes, we offer IPC-Class 3 manufacturing for critical industrial applications. This includes tighter annular ring requirements, enhanced plating quality, and 100% visual inspection per IPC-A-600 Class 3 criteria. Additional lead time may apply for Class 3 qualification.
Q3: What impedance tolerances do you offer for industrial communication buses?
A: Standard impedance control tolerance is +/-8% for 50, 90, and 100 ohm. For high-speed industrial buses like EtherCAT and Profinet, we can achieve +/-5% tolerance with stricter manufacturing controls. Every batch includes a Polar Instruments impedance test report.
Ready to start your Industrial Control PCB project?
Whether you need 5 pieces for prototyping or 50,000 for mass production, our engineering team is ready to support your industrial control project with DFM review, impedance modeling, and fast-turn fabrication.
