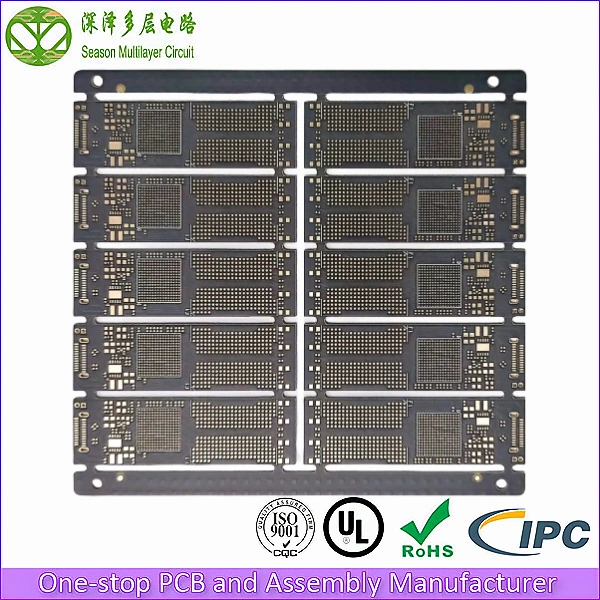

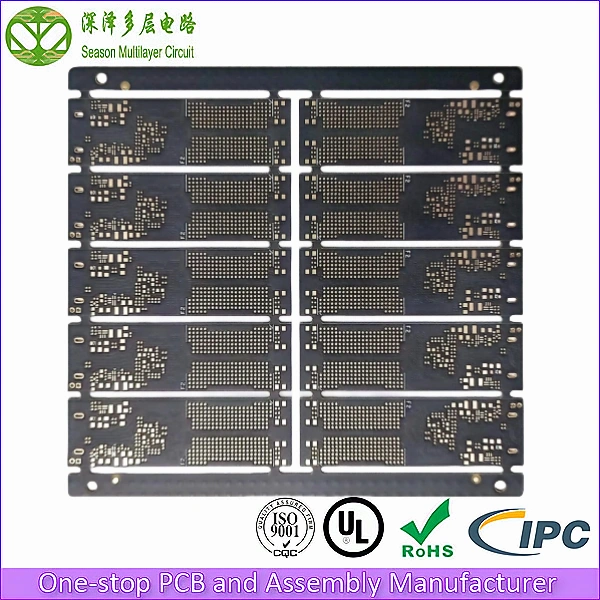

Advanced 10-Layer USSD PCB Manufacturing
Engineered for next-generation USB 3.2 portable solid-state drives. Our advanced 10-layer USSD PCB delivers exceptional signal integrity in a compact 1.0mm profile, supporting SMI SM2320, Phison, and Realtek controller platforms for portable SSDs, external drives, industrial devices, and automotive recorders.
As a specialized USSD PCB manufacturer, Season PCB combines a proven 10-layer stackup, 3/3mil fine-line routing, resin-plugged vias (POFV), and ENIG surface finish with controlled impedance for USB 3.2 Gen2 high-speed interfaces. From 5-piece NPI prototypes to 100,000+ piece mass production, every USSD PCB is 100% electrically tested in our ISO 9001 certified facility — with free DFM feedback within 24 hours. Explore our fast PCB manufacturing services or upload your Gerber files to get started.
✓ 1.0mm Compact
USB 3.2-compliant 10-layer stackup
✓ 3/3mil Trace & Space
High-density fine-line routing
✓ ENIG Surface Finish
Flat, corrosion-resistant pads for BGA assembly
✓ Resin Plug Via (POFV)
Flat in-pad vias for BGA assembly
✓ 24h DFM Review
Free engineering feedback
✓ Turnkey PCBA
Component sourcing + SMT assembly
10
Layer Count
3/3 mil
Min. Trace / Space
0.15 mm
Min. Via Diameter
Tg 170
Glass Transition Temp
1 –2 µ”
ENIG Surface Finish
ISO9001-2004
ISO14001
UL (E305905)
IPC-Class 2/Class 3
IATF 16949
RoHS
10-Layer USSD PCB Stackup Diagram
This proven 10-layer stackup architecture dedicates dedicated ground and power planes adjacent to each signal layer, minimizing crosstalk, ensuring clean return paths, and maintaining tight impedance control for USB 3.2 Gen2 differential pairs running at 10 Gbps data rates.
- L1 (Top) – Signal: Component placement, high-speed traces. The typical thickness is 1.4 mil (1/3 oz + Plating).
- Layer 2 – Ground (GND): Reference plane for L1 signals. The typical thickness is 0.7 mil (H oz).
- Layer 3 – Inner Signal : High-speed routing (USB 3.2 lanes). The typical thickness is 0.7 mil (H oz).
- Layer 4 – PWR Plane: Power distribution (VCC, VCCQ). The typical thickness is 0.7 mil (H oz).
- Layer 5 – Ground (GND): Isolation & return path. The typical thickness is 0.7 mil (H oz).
- Layer 6 – Inner Signal : NAND flash interface routing.The typical thickness is 0.7 mil (H oz).
- Layer 7 – PWR Plane : Auxiliary power rails.The typical thickness is 0.7 mil (H oz).
- Layer 8 – Inner Signal : Bottom-side routing & DRAM interface.The typical thickness is 0.7 mil (H oz).
- Layer 9 – Ground (GND): Bottom-side routing & DRAM interface.The typical thickness is 0.7 mil (H oz).
- Layer 10 (Bottom) – Signal : Bottom component pads & connector. The typical thickness is 1.4 mil (1/3 oz + Plating).
💡 Custom Stackup Optimization: If your existing design cannot meet stringent impedance requirements, our engineering team provides pre-production stackup optimization — adjusting dielectric thicknesses, copper weights, and material selections to hit your target impedance values. All stackups are validated using Polar CITS800s simulation before fabrication.
Technical Specifications & Manufacturing Capabilities
Every specification below reflects our proven mass-production capability, not just laboratory limits. Values marked “Sample capability” represent our advanced quick-turn prototyping tier.
| Parameter | Specification | Advanced Capabilities |
| Layer Count | 10Layer | 2-32L(Mass); 2-64L(Sample) |
| Base Material | Fr-4.0 S1000-2M Tg170 | SY, NY,TUC,ZY,EMC,KB,ITEQ, Rogers, Megtron , Nelco,Isola |
| Board Thickness | 1.0mm±0.10 | 0.2-6.4mm(Mass);0.15-20mm(Sample) |
| Panel Size | 94.6*89.6mm/10 | 800*600mm(Mass);1050*610(Sample) |
| Copper Thickness | Outer: 1 OZ Inner: H OZ | Outer: 1/3-12 OZ Inner: 1/4-12 OZ |
| Min Drill Size | 0.2mm | 0.15mm(Mass);0.127mm(Sample) |
| Min Trace Width/Spacing | 3/3mil | 3/3mil(1OZ) 2/2mil(HOZ) |
| Min BGA Pad | 0.25 | 0.15mm |
| Surface Finish | ENIG 1-2U” | OSP,ENIG,HASL,Electric Hard Gold, ENIG+OSP,ENEPIG,mmersion Silver & Tin |
| pecialized Processes | POFV | Resin Plugged Vias,Copper Paste Via Filling, Copper Plating Via Filling |
| Solder Mask Color | Matte Black | Green, Blue,Black,White,Yellow,Red,Purple, Matte Green,Matte Blue,Matte Black |
| Impedance Control | ±10% (50/90Ω) | ±5% (Strict Tolerance) |
| Min Routing Tolerance | ±0.10mm | ±0.75mm |
| Quality Standard | IPC-Class 2 ,RoHS | IPC-Class 3,UL,Rohs,IATF16949,GJB |
| PCB Type | Multilayer | HDI,Multilayer,Rigid-Flex,High Frequency,High Speed,Hybrids & Mixed Dielectrics |
High-Density 10-Layer USSD PCB — Built for Speed, Reliability & Scale
The 10-layer USSD PCB from Season PCB (Season Multilayer Circuit) is a high-density multilayer printed circuit board specifically engineered for next-generation USB 3.2 portable solid-state drives. Leveraging 3mil trace/space precision, a 1.0mm slim profile, and rigorous impedance control across 10 conductive layers, this board delivers the signal integrity, thermal stability, and manufacturing consistency demanded by tier-1 SSD brands and OEMs worldwide.
Designed around SMI (Silicon Motion), Phison, and Realtek controller platforms, the board supports USB 3.2 Gen2 and Gen2x2 protocols across Type-A, Type-C, and custom form factors. Since 2016, Season PCB has been one of China’s first manufacturers to achieve mass-production yields on sub-3mil geometry 10-layer SSD boards — and we’ve been refining the process every year since.
What Makes This 10-Layer USSD PCB Exceptional
📏
1.0mm Compact Profile
37% slimmer than a standard 1.60mm 10-layer board. Fits seamlessly into slim portable SSD enclosures, external drive housings, and space-constrained embedded systems without compromising layer count or signal performance.
🎯
2.5/3/3mil Trace & Space
Fine-line capability enables clean high-density BGA fan-out routing for modern USB SSD controllers with hundreds of fine-pitch balls. Achieved through LDI exposure and vacuum etching.
🔌
ENIG Surface Finish
1–2µ” ENIG plating on all pads for superior solderability, corrosion protection, and flat, void-free surfaces for fine-pitch BGA assembly across multiple reflow cycles.
⚡
Controlled Impedance ±10%
Strictly controlled 50Ω single-ended and 90Ω differential impedance across all high-speed traces. Every batch undergoes TDR testing to guarantee USB 3.2 signal integrity at 10 Gbps data rates.
🛠️
Resin Plug & Cap Vias (POFV)
Mechanical drills (0.15mm) are resin-filled and capped to create void-free, perfectly flat SMD pads — essential for reliable fine-pitch BGA placement and void-free solder joints.
🌎
High-Tg FR-4 Material (Tg 170°C)
Built with FR-4.0 S1000-2M laminate rated at Tg 170°C, ensuring dimensional stability and delamination resistance through multiple lead-free reflow cycles with peak temperatures approaching 260°C.
🔍
100% AOI & E-Test Inspection
Every single board passes automated optical inspection (AOI) on all layers and 100% netlist electrical testing. TDR impedance verification, cross-section analysis, and IST reliability testing are performed on every lot.
📦
Turnkey PCB + PCBA Service
One partner for the entire product lifecycle — from quick-turn HDI prototyping and volume PCB fabrication to component procurement, SMT assembly, reflow soldering, and functional testing. Reduce supply-chain complexity.
Where the 10-Layer USSD PCB Delivers Maximum Impact
💻
Laptops & Ultrabooks
Portable USB 3.2 SSDs as fast external drives for thin-and-light notebooks
🎮
Gaming Consoles
High-speed game library expansion for PlayStation, Xbox, and Steam Deck
🗃
Mini PCs & NUCs
Compact external storage hubs and desktop backup systems
🔌
Data Center Servers
Secure portable data shuttling and edge storage for cloud computing nodes
🚗
Automotive & Embedded
Ruggedized USSD modules for dashcams, telematics, and industrial IoT
🎥
Content Creation
High-throughput on-location storage for 4K/8K video capture and editing
Four Core Advantages of a Portable SSD Built on Our 10-Layer USSD PCB
💾
1. Massive Capacity in Minimal Space
Advanced double-sided SMT layout and 10-layer lamination accommodate high-density NAND flash packages, supporting 256GB to 8TB capacities within a compact pocket-size USB form factor. Ideal for AAA game libraries, 8K video archives, and enterprise data logging — without sacrificing a single cubic centimeter of device volume.
🚀
2. Breakthrough Data Transfer Speeds
Impedance-controlled 10-layer stackup fully unlocks the bandwidth potential of modern USB protocols:
USB 3.2 Gen2
Up to 1.05 GB/s Read
USB 3.2 Gen2x2
Up to 2.1 GB/s Read
USB4 / Thunderbolt
Up to 3.8 GB/s Read
USB 3.2 Gen2
Up to 1.05 GB/s Read
USB 3.2 Gen2x2
Up to 2.1 GB/s Read
USB4 / Thunderbolt
Up to 3.8 GB/s Read
🛡
3. Solid-State Reliability — Zero Moving Parts
Unlike HDDs with fragile read/write heads, spinning platters, and actuator arms, the portable SSD’s fully solid-state architecture is inherently immune to shock, drop, and vibration damage. This makes it the trusted choice for mobile workstations, automotive data recorders, and aerospace embedded systems where mechanical failure is not an option.
📏
4. Ultra-Compact Physical Footprint
A USB portable SSD — just smaller than a credit card — plugs directly into any Type-A or Type-C port without tools, drivers, or disassembly. This plug-and-play simplicity reduces assembly costs and makes capacity upgrades effortless anywhere.
Pushing Precision to the Limit — How We Build It
Producing a 10-layer PCB at 1.0mm thickness with 3mil trace/space is not a routine fabrication job — it demands world-class process control, specialized equipment, and deep domain expertise. Here’s how we solve the two hardest challenges.
🛠️ Challenge #1: 1.0mm Slim 10-Layer Structure
The Problem
Standard 10-layer PCBs measure 1.60mm thick. Compressing the same layer count to 1.0mm — a 37% reduction — means each core layer and prepreg sheet must scale down proportionally. Some internal cores are as thin as 3.54 mil (0.09mm). At these dimensions, micron-level material displacement during high-temperature, high-pressure lamination causes layer-to-layer misregistration. Slim boards can also warp during lead-free SMT reflow (peak ~260°C).
Our Solution
➔ Imported multi-zone vacuum laminators with precision temperature control ensure uniform resin flow and eliminate voids.
➔ High-Tg 170°C FR-4 material with tightly matched CTE throughout the Z-axis prevents delamination.
➔ Proprietary dimensional stability compensation algorithms achieve layer-to-layer alignment within ±50µm.
➔ Post-lamination stress relief and flatness correction eliminate warpage — even after multiple lead-free reflow cycles.
🎯 Challenge #2: 3/3mil Trace/Space — High-Density Routing
The Problem
Modern USB SSD controllers from SMI, Phison, and Realtek pack hundreds of fine-pitch BGA balls into a single package. Fanning out all USB 3.2 differential pairs, power rails, and control signals requires 3mil/3mil trace and space — approximately 0.076mm — tight geometry for reliable high-volume PCB production. Any deviation in line width uniformity causes impedance mismatch, leading to signal reflection, excessive insertion loss, and data corruption at multi-gigabit speeds.
Our Solution
➔ Imported multi-zone vacuum laminators with precision temperature control ensure uniform resin flow and eliminate voids.
➔ High-Tg 170°C FR-4 material with tightly matched CTE throughout the Z-axis prevents delamination.
➔ Proprietary dimensional stability compensation algorithms achieve layer-to-layer alignment within ±50µm.
➔ Post-lamination stress relief and flatness correction eliminate warpage — even after multiple lead-free reflow cycles.
Rigorous Testing — Every Board, Every Batch
Before any 10-layer USSD PCB leaves our facility, it passes through a multi-stage quality assurance gauntlet. We don’t sample-test — we test 100% of boards and validate every production lot.
🔍
Automated Optical Inspection
100% optical scan of inner and outer layers for open/short detection
⚡
Flying Probe / E-Test
100% netlist electrical testing for continuity and isolation verification
📈
TDR Impedance Testing
Time-domain reflectometry on controlled-impedance traces (±10%)
🔬
Cross-Section Analysis
Microsection inspection of plated through-holes, via fill quality, and inter-layer registration. Verifies copper plating thickness uniformity and void-free resin plugging.
🔥
Thermal Stress / IST
Wetting balance and dip-and-look testing per IPC-J-STD-003. Interconnect Stress Testing validates reliability under simulated reflow thermal cycling.
🛠️
X-Ray Inspection
Non-destructive BGA void analysis and internal layer alignment verification. Critical for confirming void-free via plugging and pad flatness under fine-pitch components.
Six Reasons Global SSD Brands Choose Season Multilayer Circuit
🏆
10+ Years of Proven SSD PCB Production
Volume manufacturing of 10-layer SSD PCBs since 2016, with continuous process refinement and yield optimization.
⚙
3 mil Precision at Scale
LDI exposure, vacuum etching, and AOI ensure consistent micro-scale trace quality batch after batch.
🔬
±10% Impedance Control
Tight impedance tolerance for single-ended and differential pairs, verified by TDR testing on every lot.
📦
One-Stop PCB + PCBA Service
From HDI prototyping and volume PCB fabrication to component sourcing and SMT assembly — a single supply chain partner.
✅
IPC Class 2 / Class 3 Compliance
Rigorous quality assurance including flying probe, AOI, X-ray, cross-section analysis, and IST reliability testing.
🌎
Global Delivery & Support
English-speaking engineering support, DHL/FedEx/UPS logistics, and flexible payment terms for international clients.
Compatible with All Major SSD Controller Platforms
Our 10-layer USSD PCB is validated across the industry’s leading USB SSD controller ecosystems. Whether you’re designing around SMI’s SM2320 native-USB architectures, Phison’s portable SSD platforms, Realtek’s bridge solutions, or other emerging controllers — our board delivers first-pass success.
🔌 SMI (Silicon Motion)
SM2320 native USB controller and next-gen platforms. Optimized BGA fan-out for SMI’s single-chip USB architectures.
🚀 Phison
PS2251-17, PS2251-18, PS2251-21, and upcoming USB platforms. Clean routing for Phison’s portable SSD designs.
🌎 Realtek
RTL9210, RTL9220, and next-gen USB bridge controllers. Reliable signal integrity for Realtek’s bridge architectures.
⚡ More Platforms
Custom BGA fan-out for additional USB SSD controllers — share your controller datasheet and we confirm layout feasibility within 24 hours.
The Future of SSD PCB Technology — What’s Next
▶ Advanced HDI & Anylayer Technology
As USB4 and Thunderbolt demand ever-higher signal frequencies, SSD PCBs are evolving toward blind/buried vias, stacked microvias, and Anylayer HDI architectures. These technologies shorten signal paths, reduce parasitic capacitance, and enable ultra-low latency data transmission.
▶ Ultra-Low-Loss & High-Tg Materials
Sustained high-speed read/write operations generate significant heat. Next-gen SSD PCBs will adopt ultra-low-loss laminates (M6, M7 grade) and high-Tg (>200°C) materials to maintain electrical and mechanical stability under thermal stress.
▶ AI, Cloud & IoT-Driven Demand Surge
The explosive growth of LLMs, edge AI inference, and 5G IoT is driving demand for custom SSD PCBs in data centers, autonomous vehicle computers, and edge AI boxes. We are scaling production to meet this multi-sector demand.
As a specialized USSD PCB manufacturer, Season PCB delivers high-quality USSD PCB solutions for portable USB storage applications. Our USSD PCB manufacturing expertise covers 4-layer to 10-layer designs with precise impedance control for high-speed signal integrity.
Every USSD PCB we produce undergoes rigorous testing to ensure reliable performance in demanding storage environments. Contact us for your USSD PCB manufacturing needs.
Season PCB specializes in USSD PCB manufacturing for solid-state storage applications. Our USSD PCB production process ensures precise impedance control for high-speed NAND and controller signals. Every USSD PCB is manufactured with low-loss materials and tested to meet stringent signal integrity requirements. Contact us for your USSD PCB manufacturing needs.
Our USSD PCB manufacturing complies with USB-IF specifications for USB interface boards and IPC manufacturing standards. Each USSD PCB undergoes impedance verification and thermal cycling tests.
Frequently Asked Questions
Common inquiries about 10-layer USSD PCB manufacturing
Q1: What makes a 1.0 mm 10-layer USSD PCB more challenging than a standard 1.60 mm 10-layer board?
The primary challenges are lamination registration accuracy and warpage control. When total board thickness is compressed to 1.0 mm, every internal copper foil and prepreg layer becomes extremely thin. During high-temperature, high-pressure lamination, even micron-level material displacement can cause layer-to-layer misalignment. Additionally, ultra-thin boards are highly susceptible to warpage during lead-free SMT reflow (peak ~260°C). Season Multilayer Circuit addresses these challenges through imported vacuum lamination presses, high-Tg (170°C) materials with matched CTE, and rigorous dimensional stability compensation algorithms.
Q2: Why is 3 mil trace/space critical for SSD PCB performance?
3 mil (≈0.076 mm) trace width and spacing is the enabling geometry for high-density BGA fan-out on modern SSD controllers like SMI, Phison, and Realtek. These chips pack hundreds of fine-pitch BGA balls; only sub-3-mil line/space precision allows smooth breakout routing of all USB 3.2 differential pairs, power, and control signals. Moreover, micron-level trace uniformity ensures impedance control within ±10%, minimizing signal reflection, insertion loss, and EMI — all essential to achieving 1 GB/s+ sustained transfer speeds without data corruption.
Q3: What one-stop services does Season Multilayer Circuit offer for SSD PCBs?
We provide a full turnkey solution covering the entire SSD PCB lifecycle: (1) R&D Prototyping — fast-turn HDI samples with blind/buried vias; (2) Volume PCB Fabrication — 4-layer to 16-layer SSD boards, supporting USB Type-A, Type-C, and custom form factors; (3) PCBA Assembly — component sourcing, SMT placement, reflow soldering, and functional testing. Our 3 mil precision and slim multilayer lamination capabilities are deeply compatible with all major NAND flash and controller ecosystems.
Q4: What is the minimum order quantity (MOQ) for 10-layer SSD PCBs?
We support both low-volume prototyping (as few as 5–10 pieces for NPI validation) and mass production (thousands to hundreds of thousands of units per month). Our flexible production lines allow us to serve startups validating their first SSD design as well as established brands scaling to high-volume manufacturing. Contact our sales team with your Gerber files and target volume for a tailored quotation.
Q5: Do you support custom stack-up design and impedance simulation?
Yes. Our engineering team provides pre-production stack-up design review and impedance simulation using Polar Instruments Si8000/Si9000 field solvers. We can optimize your layer assignment, dielectric thicknesses, and trace geometries to meet your target impedance (typically 90Ω differential for USB 3.2 lanes) before any copper is cut. This collaborative DFM (Design for Manufacturability) process saves time and ensures first-pass success.
Ready to Build Your Next-Generation Portable SSD?
Whether you need 5 prototype boards for design validation or 100,000 units per month for mass production — our team is ready. Send us your Gerber files and receive a detailed DFM review and quotation within 24 hours.
