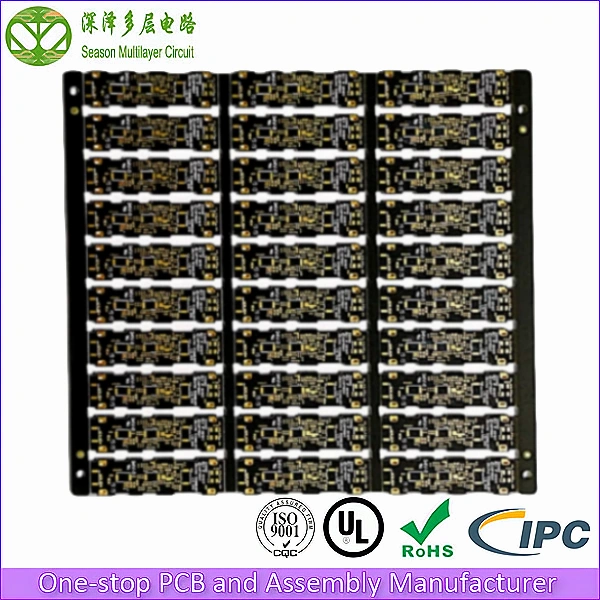

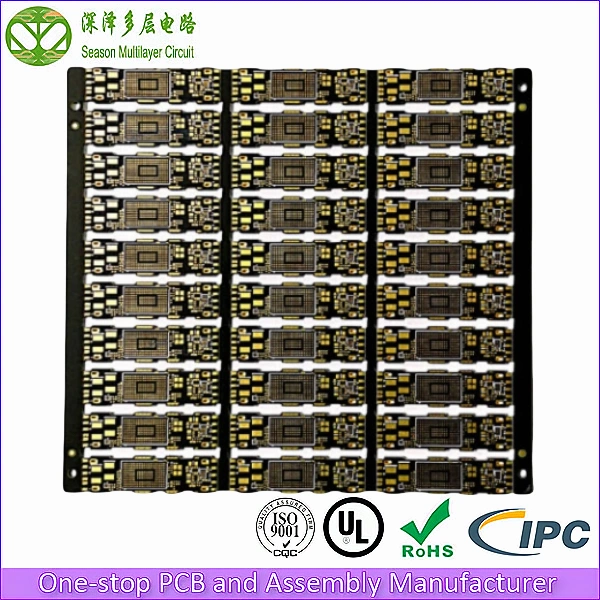

6-Layer 2-Stage HDI Sound Card PCB
Professional-grade HDI PCBs for high-fidelity sound cards with audiophile DACs, headphone amplifiers, and ultra-low-noise audio signal paths. 2-Stage HDI technology for maximum component density and signal purity.
Professional sound cards demand PCBs with exceptional signal integrity, ultra-low noise floors, and precise impedance control. From studio recording interfaces to gaming audio cards, the PCB layout directly impacts audio quality. At Season Multilayer Circuit, we manufacture 6-layer 2-Stage HDI sound card PCBs with stacked microvias and dedicated audio signal isolation for professional audio applications.
6
Layer Count
2.5/2.5 mil
Min. Trace/Space
0.075 mm
Min. Via Diameter
Tg 180
Glass Transition Temp
1-2 u”
ENIG Gold Thickness
ISO9001
ISO14001
UL (E305905)
IPC-Class 2/3
RoHS

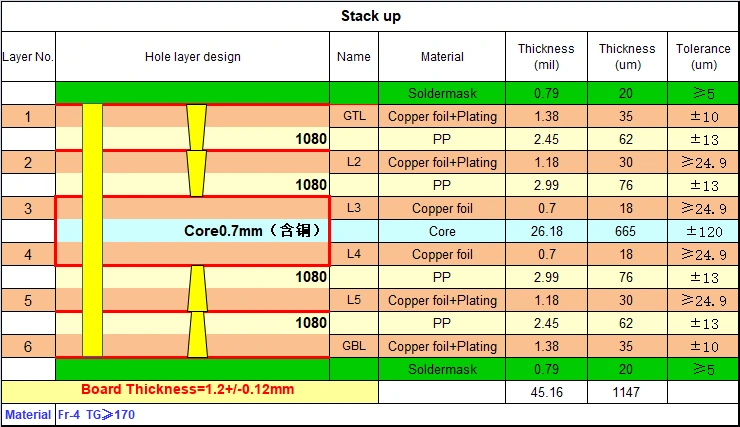

6-Layer 2-Stage HDI Sound Card PCB Stackup Diagram
Our 6-layer 2-Stage HDI stackup for sound card applications is engineered for audiophile-grade audio performance, with dedicated analog and digital ground isolation, clean power planes, and high-density routing for multi-channel DAC and ADC chips.
- Top Layer (Copper/Plated): DAC/ADC chips, op-amps, audio-grade capacitors, USB interface
- Inner Layer 2 (Analog Ground): Dedicated analog ground plane for audio signal reference
- Inner Layer 3 (Analog Signal): Analog audio routing with buried via interconnects
- Inner Layer 4 (Power Plane): Isolated analog and digital power domains
- Inner Layer 5 (Digital Signal): Digital control bus and clock signal routing
- Bot Layer (Copper/Plated): Digital ground and bottom-side component routing
2-Stage HDI enables independent analog and digital routing domains with stacked microvias, preventing digital switching noise from coupling into sensitive analog audio paths. This is critical for achieving SNR >120dB in professional audio applications.
Technical Capability & Specifications
| Parameter | Specification | Advanced Capabilities |
| Layer Count | 6 Layer 2-Stage HDI | 2-32L (Mass); 2-64L (Sample) |
| Base Material | FR-4 S1000-2M Tg180 | SY, NY, TUC, ZY, EMC, KB, ITEQ, Rogers, Megtron, Nelco, Isola |
| Board Thickness | 1.2mm | 0.2-6.4mm (Mass); 0.15-20mm (Sample) |
| Panel Size | 100x60mm/1 | 800x600mm (Mass); 1050×610 (Sample) |
| Copper Thickness | Outer: 1 OZ Inner: 0.5 OZ | Outer: 1/3-12 OZ Inner: 1/4-12 OZ |
| Min Drill Size | 0.075mm (Laser) | 0.050mm (Laser Sample) |
| Min Trace Width/Spacing | 2.5/2.5 mil | 2.0/2.0 mil (Sample) |
| Blind Via (Stage 1) | 0.075mm Laser | 0.050mm Laser (Sample) |
| Blind Via (Stage 2) | 0.075mm Laser | 0.050mm Laser (Sample) |
| Surface Finish | ENIG (Gold Flash) | ENIG, ENEPIG, Immersion Silver, OSP |
| Solder Mask | Green | Green, Black, Blue, Red, Yellow, White, Purple |

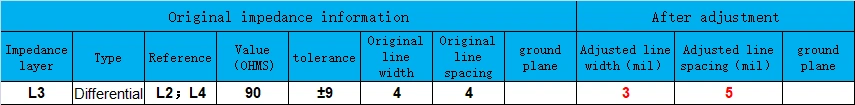

| Impedance Control | 50/75/90 Ohm +/-8% | +/-5% available for critical audio paths |
Key Advantages of Our Sound Card PCB
- Audiophile Signal Isolation: Separate analog and digital ground planes (L2/L5) with 2-Stage HDI microvia interconnects physically isolate audio signal paths from digital switching noise, achieving SNR >120dB.
- 2-Stage HDI Density: Stacked microvias enable 60% higher routing density for multi-channel DAC/ADC chips, op-amp arrays, and audio-grade capacitors in standard PCIe sound card form factors.
- Clean Power Distribution: Split power plane (L4) provides independent analog and digital power domains, preventing power supply noise from degrading audio performance.
- ENEPIG Surface Finish Option: Available ENEPIG (Palladium) finish provides superior wire bonding and corrosion resistance for premium audio IC packages.
- Tight Impedance Control: 75 ohm impedance control for S/PDIF coaxial outputs and 50 ohm for clock distribution, with +/-5% tolerance available for critical audio paths.
Overcoming Critical Challenges in Sound Card Design
When sourcing HDI PCBs for professional sound card applications, engineers encounter three critical challenges. Here is how our engineering team eliminates them:
1. Digital Noise Coupling into Analog Audio Paths
The Problem: Sound cards integrate high-speed USB controllers, DAC chips, and ADC chips on the same board. Digital switching noise from USB and clock circuits couples into sensitive analog audio traces, causing hissing, hum, and reduced dynamic range that destroys audio quality.
Our Solution: Our 2-Stage HDI stackup creates a physical barrier between analog and digital domains. The dedicated analog ground plane (L2) and analog signal layer (L3) are separated from the digital signal layer (L5) by the split power plane (L4). Stacked microvias enable connections without through-hole vias that would bridge the isolation barrier.
2. Power Supply Noise Degrading DAC Performance
The Problem: High-performance DACs require ultra-clean power supplies. Switching noise from USB bus power and digital circuits rides the power lines into the DAC, causing quantization errors and reduced bit depth performance.
Our Solution: The split power plane (L4) provides independent power domains for analog and digital circuits. We recommend separate linear regulators for analog power, fed through dedicated blind vias that bypass the digital power network. Combined with proper decoupling capacitor placement, this achieves power supply rejection >80dB.
3. Component Density for Multi-Channel Audio
The Problem: Professional sound cards feature 8-16 channel DACs, multiple op-amps, headphone amplifiers, and MIDI interfaces — all within a standard PCIe card size. Conventional PCBs cannot route the required interconnects.
Our Solution: Our 2-Stage HDI technology with 0.075mm stacked microvias enables 60% higher routing density. Via-in-pad technology places interconnects directly under BGA pads, allowing dense component placement on both board sides without routing conflicts.
Where Our Sound Card PCBs Are Used
Our 6-layer 2-Stage HDI sound card PCBs power a wide range of professional audio applications:
- Professional Studio Audio Interfaces: Multi-channel recording interfaces with 24-bit/192kHz ADCs and DACs for music production studios.
- Audiophile Sound Cards: High-fidelity PCIe sound cards with premium DACs, replaceable op-amps, and balanced outputs for discerning listeners.
- Gaming Audio Cards: Low-latency gaming sound cards with virtual surround processing and dedicated headphone amplifiers.
- Broadcast Audio Processors: Professional broadcast-grade audio processing boards with digital mixing and effects.
- USB Audio DACs: External USB DAC/headphone amplifier combos requiring compact, high-density audio PCBs.
Our Quality Guarantee for Sound Card PCBs
Professional audio electronics demand exceptional signal quality and manufacturing consistency. We implement rigorous testing protocols on every board:
- 100% AOI Inspection: Automated Optical Inspection scans every layer for trace breaks, shorts, and microvia defects.
- 100% Electrical Testing (E-Test): Flying probe or fixture-based testing verifies continuity, isolation, and microvia integrity.
- Controlled Impedance Testing: Polar Instruments test report documenting 50/75/90 ohm compliance for audio signal paths.
- Cross-Section Analysis: Sample cross-sectioning verifies stacked microvia copper fill and lamination quality.
- Certifications: ISO9001:2015, ISO14001, UL (E305905), RoHS compliant. IPC-Class 3 available for professional audio.
Why Choose Season PCB for Your Sound Card PCB?
With nearly 20 years of experience in PCB manufacturing, Season Multilayer Circuit has served over 8,000 global clients in professional audio, consumer electronics, and telecommunications. Our three manufacturing facilities provide capacity for both rapid prototyping and high-volume production.
We understand that professional audio electronics demand exceptional signal purity and consistency. That is why every 6-layer 2-Stage HDI sound card PCB we ship is backed by:
- Free DFM file checking before production
- 24/7 dedicated engineering support
- Guaranteed on-time delivery
- No minimum order quantity — from 1 prototype to 100,000+ units
- Engineering fee waivers on bulk production orders
Season PCB specializes in 2-Stage HDI sound card PCB manufacturing for professional audio applications. Our sound card PCB products feature analog-digital signal isolation, clean power distribution, and audiophile-grade impedance control. Each sound card PCB meets IPC standards.
For your sound card PCB needs, Season PCB provides fast turnaround, competitive pricing, and ISO-certified quality. Contact us for sound card PCB manufacturing today.
Our sound card PCB boards comply with UL safety certifications and IPC manufacturing standards. Each sound card PCB undergoes signal integrity testing and microvia reliability verification.
Frequently Asked Questions
Q1: What SNR can your sound card PCBs achieve?
A: With proper component selection and our dedicated analog-digital isolation stackup, our sound card PCBs consistently support SNR >120dB and THD <0.0005%. The 2-Stage HDI stackup with separate analog and digital ground planes is key to achieving these specifications.
Q2: Do you offer ENEPIG surface finish for audio PCBs?
A: Yes, we offer ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold) as a premium surface finish option. ENEPIG provides superior wire bonding capability, flat surface topology, and excellent corrosion resistance — ideal for premium audio IC packages and gold-wire bonded DAC chips.
Q3: What is the lead time for 2-Stage HDI sound card PCB prototypes?
A: 2-Stage HDI requires two sequential lamination cycles. Standard prototype lead time is 10-12 working days. Expedited 7-day service is available. Mass production typically takes 18-22 working days.
Ready to start your Sound Card PCB project?
Whether you need 5 pieces for prototyping or 50,000 for mass production, our engineering team is ready to support your sound card project with DFM review, impedance modeling, and fast-turn fabrication.
