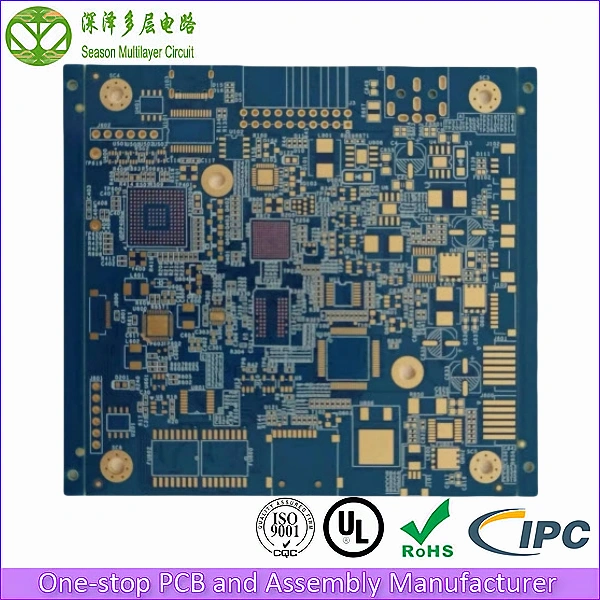

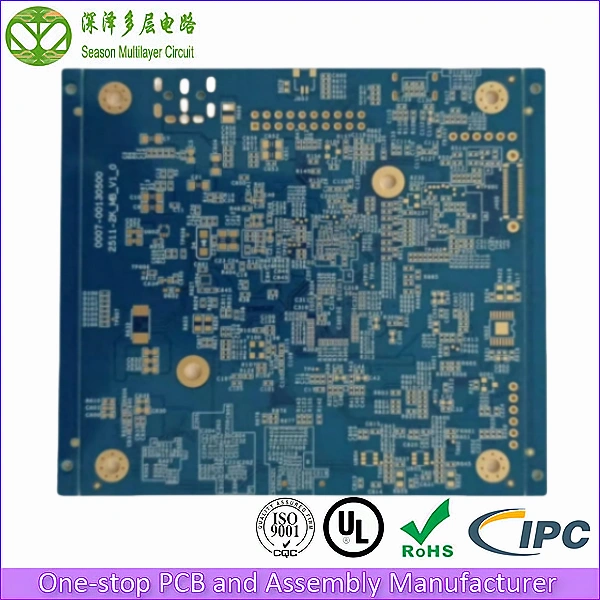

6-Layer HDI Automotive HUD PCB
Precision-engineered HDI PCBs for automotive head-up displays (HUD) with high-resolution projection, real-time data overlay, and automotive-grade reliability for next-generation driving experiences.
Automotive head-up displays project critical driving information — speed, navigation, warnings — directly onto the windshield, keeping the driver’s eyes on the road. These systems demand PCBs with exceptional signal integrity for high-speed video processing, precise optical alignment, and zero-failure reliability. At Season Multilayer Circuit, we manufacture 6-layer HDI automotive HUD PCBs that meet the stringent requirements of modern AR-HUD and C-HUD systems.
1+4+1
Layer Count
3/3 mil
Min. Trace/Space
0.10 mm
Min. Via Diameter
Tg 180
Glass Transition Temp
1-2 u”
ENIG Gold Thickness
ISO9001
ISO14001
UL (E305905)
IPC-Class 2/3
IATF 16949
RoHS
6-Layer HDI Automotive HUD PCB Stackup Diagram

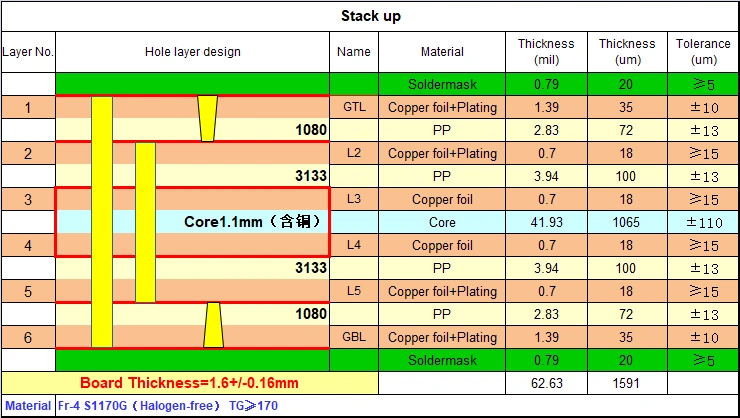

Our 6-layer HDI stackup for automotive HUD applications is designed to support high-speed video signal processing, optical driver circuits, and sensor integration within the compact form factor required by windshield-mounted and dashboard-integrated HUD modules.
- Top Layer (Copper/Plated): Fine-pitch components, projection driver ICs, optical sensors
- Inner Layer 2 (Ground Plane): EMI shielding for L1 high-speed video signals
- Inner Layer 3 (Signal Layer): Differential pair routing for MIPI/LVDS display interfaces
- Inner Layer 4 (Power Plane): Clean power distribution for projection optics and processing units
- Inner Layer 5 (Signal Layer): Secondary signal routing with buried via interconnects
- Bot Layer (Copper/Plated): Thermal management and bottom-side routing
If your current trace widths and spacings fall outside strict impedance tolerance zones, our engineering team will design the optimal stackup architecture for your specific HUD layout, making micro-adjustments to guarantee your board performs exactly as intended.
Technical Capability & Specifications
| Parameter | Specification | Advanced Capabilities |
| Layer Count | 6-Layer HDI（1+4+1） | 2-32L(Mass); 2-64L(Sample) |
| Base Material | Fr-4.0 S1700G（Halogen-free） Tg170 | SY, NY,TUC,ZY,EMC,KB,ITEQ, Rogers, Megtron , Nelco,Isola |
| Board Thickness | 1.6mm | 0.2-6.4mm(Mass);0.15-20mm(Sample) |
| Panel Size | 105*195mm/1 | 800*600mm(Mass);1050*610(Sample) |
| Copper Thickness | Outer: 1 OZ Inner: 1 OZ | Outer: 1/3-12 OZ Inner: 1/4-12 OZ |
| Min Drill Size | 0.2mm | 0.15mm(Mass);0.127mm(Sample) |
| Min Blind Via | 0.1mm | 0.075mm（Sample） |
| Min Buried Via | 0.15mm | 0.127mm |
| Min Trace Width/Spacing | 3/3mil | 2.5/2.5mil(1OZ)Mass; 2/2mil（Sample） 2/2mil(HOZ)Mass;1.8/1.8mil(Sample) |
| Min BGA Pad | 0.2 | 0.15mm |
| Surface Finish | ENIG1-2 µ” | OSP,ENIG,HASL,Electric Hard Gold, ENIG+OSP,ENEPIG,mmersion Silver & Tin |
| Solder Mask Color | Blue | Green, Blue,Black,White,Yellow,Red,Pruple, Matte Green,Matte Blue,Matte Black |
| Impedance Control | ±5% (Strict Tolerance) 50/68/90/100 OHM | ±5% (Strict Tolerance) |
| Min Routing Tolerance | ±0.15mm | ±0.75mm |
| Quality Standard | IPC-Class 3,RoHS | IPC-Class 3,UL,Rohs,IATF16949,GJB |
| PCB Type | HDI（1+N+1） | HDI,Multilayer,Rigid-Flex,High Frequency,High Speed,Hybrids & Mixed Dielectrics |
Key Advantages of Our HUD PCB
- High-Speed Video Signal Integrity: Controlled impedance differential pairs (90/100 ohm +/-8%) for MIPI DSI and LVDS interfaces ensure artifact-free projection of navigation and ADAS overlays at 60+ fps.
- Ultra-Compact HDI Design: Laser-drilled microvias and buried interconnects enable 40% smaller board area, fitting within the slim optical housing of windshield-mounted HUD modules.
- Automotive Thermal Reliability: High-TG FR4 (Tg180) substrate with optimized thermal via arrays withstands dashboard temperatures exceeding 95C without delamination or signal degradation.
- EMI Shielding for Optical Circuits: Interleaved ground planes isolate sensitive projection driver circuits from switching noise, preventing display flicker and color distortion.
- IATF 16949 Manufacturing: Full automotive quality management system ensuring consistent, traceable, zero-defect production for safety-critical HUD electronics.
Overcoming Critical Challenges in HUD System Design
When sourcing HDI PCBs for automotive head-up display applications, engineers encounter three critical challenges. Here is how our engineering team eliminates them:
1. Video Signal Distortion in Projection Displays
The Problem: HUD systems process high-resolution video at 60+ fps through MIPI or LVDS interfaces. Poor PCB stackup design causes EMI, signal reflection, and impedance mismatch, resulting in display flickering, ghosting, or frame drops that distract the driver.

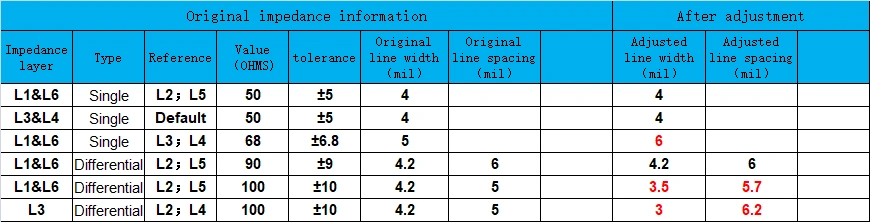

Our Solution: Our 6-layer HDI architecture pairs every high-speed signal layer with a solid ground reference plane. Differential pair routing maintains tight impedance control (90/100 ohm +/-8%), ensuring clean video transmission from the processing unit to the projection optics with zero artifacts.
2. Thermal Management in Sealed Optical Housings
The Problem: HUD optical modules are sealed inside compact housings on the dashboard, where temperatures can exceed 95C under direct sunlight. Standard PCBs suffer from delamination, via failure, and IC degradation at these temperatures.
Our Solution: We use High-TG FR4 (Tg180) materials with dedicated thermal via arrays under hot components. The inner power plane (L4) serves as a thermal spreader. For extreme environments, we offer heavy copper pours (up to 12 OZ) and metal-core substrate options.
3. Miniaturization for Dashboard Integration
The Problem: AR-HUD systems require powerful processing ICs, high-speed memory, and optical drivers all within a board small enough to fit behind the dashboard. Conventional PCB technology cannot achieve the required component density.
Our Solution: Our HDI technology with 0.10mm laser-drilled blind vias and buried vias enables fine-pitch BGA routing in 40% less area. Components can be placed on both sides with via-in-pad technology, maximizing density without sacrificing routability.
Where Our HUD PCBs Are Used
Our 6-layer HDI automotive HUD PCBs power a wide range of head-up display applications:
- Windshield HUD (W-HUD): Projection-based displays reflecting navigation and speed information onto the windshield for full-width visibility.
- Augmented Reality HUD (AR-HUD): Advanced systems overlaying real-time 3D navigation arrows and hazard warnings onto the road ahead, requiring high-speed GPU interfaces.
- Combiner HUD (C-HUD): Compact dashboard displays using a transparent combiner panel, ideal for mid-range vehicle platforms.
- Commercial Vehicle HUD: Heavy-duty HUD systems for trucks and buses displaying blind-spot camera feeds and lane departure warnings.
- Motorcycle HUD Modules: Helmet-integrated or handlebar-mounted HUD systems with ultra-compact PCB requirements.
Our Quality Guarantee for HUD PCBs
HUD electronics are safety-critical systems that cannot tolerate failures. We implement rigorous testing protocols on every board:
- 100% AOI Inspection: Automated Optical Inspection scans every layer for trace breaks, shorts, and alignment errors.
- 100% Electrical Testing (E-Test): Flying probe or fixture-based testing verifies continuity and isolation.
- Controlled Impedance Testing: Polar Instruments test report documenting 90/100 ohm compliance with every batch.
- X-Ray Inspection: BGA and QFN solder joint verification for fine-pitch projection driver packages.
- Certifications: ISO9001:2015, ISO14001, IATF16949, UL (E305905), RoHS compliant. IPC-Class 3 available.
Why Choose Season PCB for Your HUD PCB?
With nearly 20 years of experience in PCB manufacturing, Season Multilayer Circuit has served over 8,000 global clients in automotive electronics, consumer devices, and telecommunications. Our three manufacturing facilities provide capacity for both rapid prototyping and high-volume production.
We understand that HUD electronics demand zero-defect reliability. That is why every 6-layer HDI automotive HUD PCB we ship is backed by:
- Free DFM file checking before production
- 24/7 dedicated engineering support
- Guaranteed on-time delivery
- No minimum order quantity — from 1 prototype to 100,000+ units
- Engineering fee waivers on bulk production orders
Season PCB specializes in HDI automotive HUD PCB manufacturing for head-up display applications. Our HUD PCB products feature high-density interconnect technology, controlled impedance routing, and automotive-grade reliability. Each HUD PCB meets IATF 16949 standards.
For your automotive HUD PCB needs, Season PCB provides fast turnaround, competitive pricing, and IATF-certified quality. Contact us for HUD PCB manufacturing today.
Our automotive HUD PCB boards comply with UL safety certifications and IPC manufacturing standards. Each HUD PCB undergoes thermal stress testing and signal integrity verification.
Frequently Asked Questions
Q1: What impedance control do you offer for HUD video signals?
A: Our standard impedance control tolerance is +/-8% for 50, 90, and 100 ohm differential pairs used in MIPI DSI and LVDS interfaces. For ultra-high-speed applications, we can achieve +/-5% tolerance with stricter manufacturing controls.
Q2: Can you manufacture HUD PCBs with via-in-pad technology?
A: Yes, we support via-in-pad (VIP) technology with plated and resin-filled microvias. This enables fine-pitch BGA routing in compact HUD modules where space is critical. Our 0.10mm laser-drilled blind vias are compatible with VIPPO processes.
Q3: What is the lead time for HDI HUD PCB prototypes?
A: Standard HDI prototype lead time is 7-10 working days due to the sequential lamination process. Expedited 5-day service is available for urgent projects. Mass production typically takes 15-20 working days.
Ready to start your HUD PCB project?
Whether you need 5 pieces for prototyping or 50,000 for mass production, our engineering team is ready to support your HUD project with DFM review, impedance modeling, and fast-turn fabrication.
