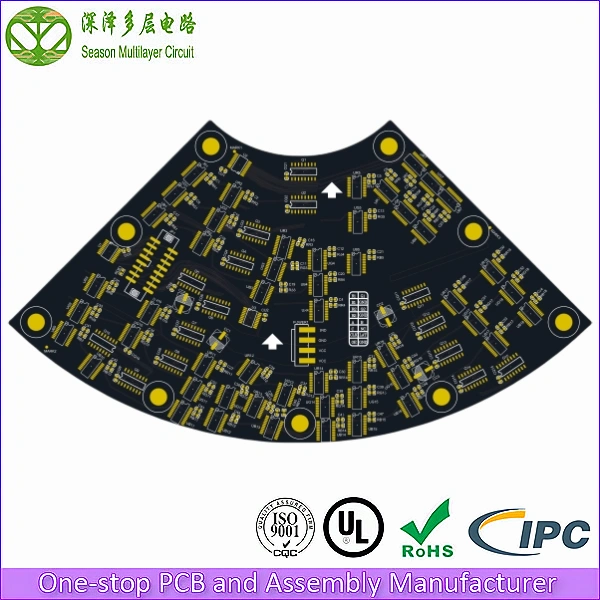

4-layer 1-Stage LED Anomalous Screen PCB

‌HDI LED Anomalous Screen PCB utilize High-Density Interconnect (HDI) technology. These custom-shaped printed circuit boards can be tailored to specific requirements, accommodating diverse display shapes and sizes. By employing micro-blind and buried via technology alongside advanced manufacturing processes, HDI enables significantly higher circuit density. This meets the critical demands of LED display applications, which require high-density circuitry, component density, and integration levels.‌

High-Performance LED Anomalous Screen: Features, Application Scenarios and PCB Development Trends

What Is an LED Anomalous Screen?

An LED Anomalous Screen is a specialized customized display screen designed to deliver vivid, three-dimensional images and video visuals. Owing to its flexible molding capability and outstanding display performance, it has been widely adopted in commercial publicity, cultural exhibitions, entertainment performances and many other industries. Behind the stable and high-definition operation of every customized LED anomalous screen,LED Anomalous Screen PCB serves as the core hardware carrier that determines the overall working stability and display quality of the display device. This article comprehensively analyzes the core characteristics, diverse application scenarios and future development trends of LED anomalous screens, with an in-depth insight into the development linkage of LED Anomalous Screen PCB.

1. Core Features of LED Anomalous Screens

1.1 Custom Irregular Shape Design

One of the most prominent advantages of LED anomalous screens is customizable shaping. Manufacturers can adjust the size and outline of the screen according to on-site installation requirements, supporting special shapes such as circles, triangles, arcs and other irregular structures. This flexible design breaks the limitations of traditional rectangular LED displays, perfectly adapting to diverse and personalized installation environments. The customized structural design also puts forward higher precision requirements for LED Anomalous Screen PCB, requiring circuit boards to match irregular splicing structures.

1.2 High Display Resolution

Equipped with high-precision manufacturing technology, LED anomalous screens feature ultra-fine pixel pitch. The compact arrangement of pixel points enables the screen to present high-definition, delicate and realistic image details. Whether playing high-brightness promotional videos or refined art pictures, it can restore rich color layers and clear picture textures, bringing an immersive visual experience to audiences.

1.3 Low Power Consumption & Energy Saving

Energy efficiency is a key competitive edge of modern LED anomalous screens. The low-power chip design effectively reduces overall energy consumption, complying with global energy conservation and environmental protection concepts. In addition, the optimized circuit structure greatly lowers the heat generation of the display screen. The excellent heat dissipation performance of high-quality LED Anomalous Screen PCB further ensures stable heat output, avoiding thermal impact on surrounding environments and extending the service life of the display.

1.4 Excellent Stability & High Reliability

LED anomalous screens are manufactured with premium raw materials and mature production processes. With professional waterproof, dustproof and corrosion-resistant treatments, they can operate stably in harsh environments such as high temperature, low temperature and humid outdoors. The high-reliability circuit design of LED Anomalous Screen PCB effectively reduces circuit failure rates, ensuring long-term uninterrupted operation of the display screen and lowering later maintenance costs.

1.5 Rich & Diverse Color Performance

This type of LED display supports multiple basic colors including red, green, blue and yellow. Through intelligent color mixing technology, it can present thousands of gradient colors, realizing rich and saturated color matching. Whether for commercial advertising color rendering or stage art atmosphere creation, it can achieve vivid and three-dimensional visual effects to meet diverse display demands.

2. Common Application Scenarios of LED Anomalous Screens

2.1 Commercial Plazas

In commercial plazas and shopping malls, LED anomalous screens are widely used to broadcast advertising content, promotional activities and brand introduction information. The unique irregular appearance easily attracts pedestrian attention, boosting customer flow and consumption conversion rate. Meanwhile, the fashionable and technological display effect optimizes the overall commercial atmosphere and upgrades the grade of shopping malls.

2.2 Exhibition Halls & Museums

Science and technology museums, art galleries and various exhibition centers prefer LED anomalous screens for display design. The screens dynamically exhibit cultural relics, artworks and technological exhibits, delivering strong three-dimensional visual impact for visitors. It optimizes the visiting experience and realizes the innovative display of cultural and technological resources.

2.3 Urban Parks

As an important part of urban landscape design, LED anomalous screens in parks display scenic spot introductions, animal popular science and public welfare propaganda content. It enriches tourists’ visual experience, adds modern technology sense to the natural park environment, and realizes the integrated integration of nature and technology.

2.4 Sports Stadiums

Installed around the stands of sports stadiums, LED anomalous screens present high-definition and smooth competition pictures for audiences. It can also broadcast real-time data and wonderful replay clips, enhancing the viewing experience of sports events. Moreover, it endows the stadium with a modern and technological aesthetic.

2.5 Large-Scale Performances & Concerts

For music concerts, galas and other large-scale performances, LED anomalous screens act as auxiliary display carriers to play stage videos and dynamic pictures. Cooperated with stage lighting, it creates a shocking audio-visual feast and enriches the performance presentation forms.

2.6 Stage Performance Design

LED anomalous screens can be seamlessly combined with stage structures to build virtual scenes and special effect backgrounds. The flexible irregular modeling breaks the monotonous limitation of traditional stages, bringing diverse and creative visual effects to stage performances.

2.7 Atmosphere Decoration for Events

With high brightness and high contrast characteristics, LED anomalous screens are ideal for atmosphere rendering in celebrations, ceremonies and opening events. Playing promotional videos and dynamic background pictures can quickly activate the on-site atmosphere and create a warm and lively activity scene.

2.8 Urban Municipal Planning Halls

Municipal planning halls adopt LED anomalous screens to display urban planning drawings, construction progress and public infrastructure information. Intuitive high-definition video and image presentation help citizens clearly understand urban development trends, promote public participation in urban planning, and improve urban management efficiency.

2.9 Transportation Hubs

Airports, railway stations, docks and other transportation hubs widely use LED anomalous screens to release flight schedules, weather forecasts and traffic condition reminders. It provides accurate travel information for passengers, optimizing travel efficiency. In addition, the high-tech screen design enhances the overall modern image of transportation infrastructure.

2.10 Digital Media Industry

In the digital media field, LED anomalous screens serve as outdoor billboards, large wall-mounted display screens and advertising display walls. The high-definition display effect efficiently attracts audience attention, improves advertising conversion rates, and helps enterprises enhance brand awareness and market competitiveness. It also strongly promotes the rapid development of the digital media industry.

3. Industry Summary & PCB Development Trend

As an advanced customized display technology, LED anomalous screens have irreplaceable application value in multiple industries. Their flexible modeling, high definition, energy conservation and high stability determine broad market prospects and strong market competitiveness. With the continuous upgrading of display technology, LED anomalous screens will realize more intelligent functions and refined display effects to meet the escalating visual and customized demands of various industries.

The iterative upgrading of LED anomalous screens also drives the rapid development of the supporting circuit board industry. The market demand for LED Anomalous Screen PCB continues to grow, especially HDI circuit boards for high-end LED anomalous screens. The continuous innovation of display equipment has brought a large number of customized orders to the PCB industry, promoting technological optimization and industrial upgrading of display-specific HDI circuit boards. In the future, high-precision, heat-resistant and lightweight LED Anomalous Screen PCB will become the mainstream development direction of the industry.

FAQs About LED Anomalous Screen and LED Anomalous Screen PCB

Q1: What are the key requirements for LED Anomalous Screen PCB?

High-quality LED Anomalous Screen PCB needs to meet three core requirements: high precision circuit wiring to adapt to irregular screen splicing, excellent heat dissipation performance to reduce screen overheating failure, and strong waterproof and dustproof resistance to adapt to complex outdoor and indoor installation environments. Besides, flexible and ultra-thin PCB materials are usually adopted to match the special curved and irregular shapes of anomalous screens.

Q2: What is the service life of an LED anomalous screen?

Under normal use and regular maintenance, the service life of a standard LED anomalous screen can reach 50,000 to 100,000 hours. The service life is largely determined by the quality of LED Anomalous Screen PCB. High-quality PCBs can effectively avoid short circuits and circuit aging, greatly reducing screen failure rates and extending the overall service life of display equipment.

Q3: Which industries have the highest demand for customized LED anomalous screens?

At present, the industries with the largest market demand include commercial advertising, cultural tourism and exhibition, stage performance and urban municipal construction. These industries have high requirements for screen appearance customization and display effect, thus requiring customized LED Anomalous Screen PCB to support irregular screen production, which further boosts the booming development of the customized PCB market.
