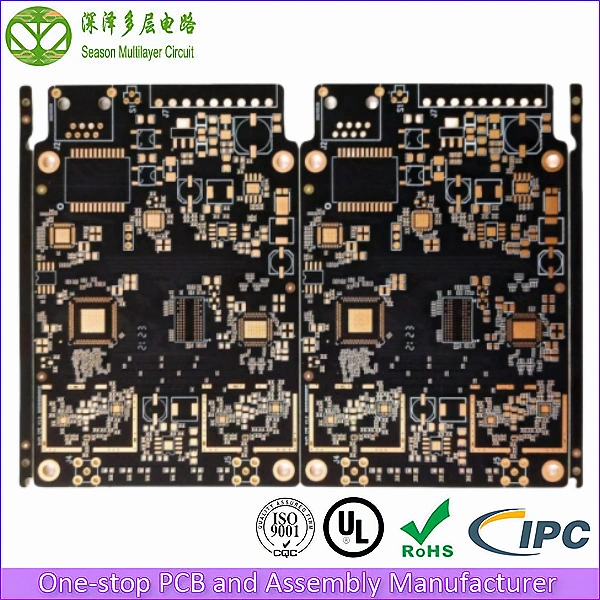

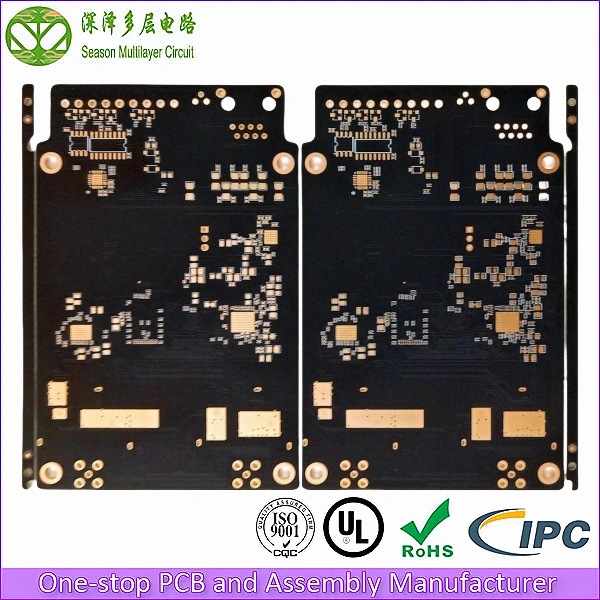

4-layer Router PCB
Router PCB
Layer Count: 4L
Material: FR4 Tg135
Board Thickness: 1.6mm
Panel Size: 156*114mm/2
Outer Layer Copper Thickness: 1OZ
Inner Layer Copper Thickness: 1OZ
Min Via Diameter: 0.20mm
Min BGA Pad: 0.25mm
Trace Width/Spacing: 3.5/3.5mil
Surface Finish: ENIG2U’’
Special Process: POFV
4-layer router PCB, primarily used for network connectivity in scenarios such as homes, offices, commercial centers, transportation, and digital command centers.
The Critical Role of 4-Layer Router PCBs in Modern Networking
Introduction
In today’s interconnected world, routers serve as the backbone of digital communication, enabling seamless data transfer across networks. At the heart of every router lies its Printed Circuit Board (PCB), which integrates electronic components and facilitates signal transmission. 4-layer router PCBs are particularly crucial for high-performance networking applications, offering enhanced signal integrity, reduced electromagnetic interference (EMI), and improved power distribution.
Season Multilayer Circuit, a leading global provider of one-stop PCB and PCBA manufacturing services, specializes in producing high-quality 4-layer router PCBs that meet the demands of modern networking. These PCBs are essential for home, office, commercial, transportation, and digital command center applications, ensuring reliable and efficient connectivity.
1. What is a Router?
A router is a networking device that connects multiple networks and directs data packets between them. By analyzing network address information, routers determine the optimal path for data transmission, ensuring efficient and secure communication.
Key Functions of a Router:
- Network Interconnection: Links different networks (e.g., LAN, WAN, Wi-Fi).
- Data Routing: Forwards data packets to their correct destinations.
- Traffic Optimization: Selects the best path to minimize latency and maximize speed.
- Security Management: Implements firewalls, VPNs, and access controls to protect networks.
Routers are indispensable in modern computing, supporting everything from home internet access to enterprise-level data centers.
2. The Role of PCBs in Routers
The PCB is the foundation of any router, providing the physical platform for mounting electronic components and enabling electrical connections.
Why 4-Layer Router PCBs Are Essential:
- Enhanced Signal Integrity: Additional layers reduce noise and crosstalk.
- Better Power Distribution: Dedicated power and ground planes improve stability.
- Higher Component Density: Supports complex routing for advanced networking chips.
- Improved Thermal Management: Efficient heat dissipation prolongs device lifespan.
Key Components on a Router PCB:
- Processor (CPU): Handles data routing and network management.
- Memory (RAM/Flash): Stores routing tables and firmware.
- Network Interfaces (Ethernet, Wi-Fi, Fiber): Enable wired and wireless connections.
- Power Management ICs: Regulate voltage for stable operation.
A well-designed 4-layer PCB ensures optimal performance, reliability, and scalability for modern routers.
3. Applications of Routers
Routers are used in a wide range of environments, from small-scale home networks to large-scale industrial systems.
Common Use Cases:
- Home & Office Networks: Provides internet access and local connectivity.
- Commercial & Enterprise Networks: Supports high-speed data transfer in businesses.
- Transportation & Smart Cities: Enables traffic management and IoT-based systems.
- Digital Command Centers: Ensures secure and real-time communication in critical operations.
With the rise of 5G, IoT, and AI-driven networking, routers are evolving to handle higher bandwidths and smarter data processing.
4. The Future of Router PCBs
As networking technology advances, router PCBs must keep pace with increasing demands for speed, efficiency, and miniaturization.
Emerging Trends in Router PCB Technology:
- High-Speed Materials: Low-loss substrates for 5G and high-frequency applications.
- Advanced Manufacturing Techniques: Laser drilling, HDI (High-Density Interconnect), and embedded components.
- AI-Optimized Routing: Smart algorithms for dynamic traffic management.
- Energy Efficiency: Low-power designs for sustainable networking.
The integration of AI, edge computing, and IoT will further drive innovation in 4-layer router PCBs, making them smarter and more adaptable.
5. Conclusion
Routers are critical for modern communication, and their performance heavily depends on the quality of their PCBs. 4-layer router PCBs offer superior signal integrity, power efficiency, and thermal management, making them ideal for high-performance networking applications.
Season Multilayer Circuit is committed to delivering high-quality, cost-effective 4-layer PCBs with fast turnaround times (48, 72, or 96-hour expedited prototyping). Our dedication to affordable excellence has earned us global recognition and customer trust.
As networking technology evolves, router PCBs will continue to play a pivotal role in shaping the future of connectivity—whether for smart homes, industrial IoT, or next-gen digital infrastructure.
Why Choose Season Multilayer Circuit?
✔ Fast Prototyping: 48/72/96-hour expedited PCB samples.
✔ High Quality & Low Cost: Premium PCBs at competitive prices.
✔ Global One-Stop Service: Full support from design to PCBA assembly.
✔ Reliable Performance: Optimized for high-speed and high-frequency applications.
For cutting-edge 4-layer router PCBs, trust Season Multilayer Circuit—your partner in advanced PCB manufacturing.
